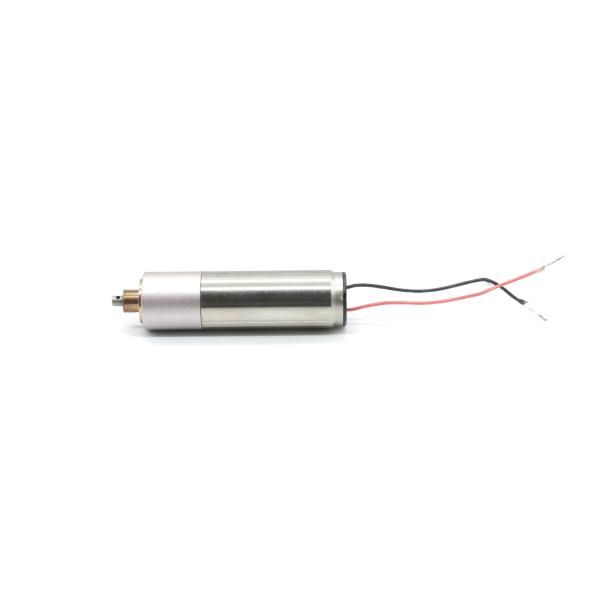

Hetai New Product 13PG1332-03017556-16K 1000rpm 3V 2W Micro Planetary Reducer Motor

What is Brushed DC motor?
Brushed DC motors are one of the simplest types of DC motor. It uses brushes to deliver current to the motor windings through mechanical commutation.
The number of coils wound around the motor and the density of the coils determine the properties of the motor. The armature or rotor is an electromagnet. The field magnet is a permanent magnet. This motor does not require any controller to operate or vary the speed.

Technical requirements:

1. Rated voltage:3V,Rated torque:20g.cm;

2. No-load speed:1094±3%rpm,No-load current:≤130mA

3. Rated Speed:1000±10%rpm,Rated current:≤1300mA

4. Starting current:≤0.8A

5. Reduction ratio:1:16

6. Parts are RoHS compliant.

Mechanical Dimension

Changzhou Hetai Motors

Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡. Since Hetai founded in 1999, the specialization, scale of production has ensured to manufacture five million motors every year.

Market Range Of HeTai

Production Process Of HeTai

Apply in Root Canal Therapy Equipment

Automatic Assembly Line

Hetai has several sophisticated instruments and equipment,such as Laboratory,Rotor Grinding Outer Circle,CNC Center.We also have several fully automatic modern assembly lines and several test workshops.

Packing&Delivery

Certification Of DC Brush Gear Motor

Changzhou Hetai Motors

Hetai is located in Changzhou, Jiangsu province. Our workshop area is over 15,000㎡. Since Hetai was founded in 1999, the specialization and scale of production have ensured to manufacture of five million motors every year.

Factory Scale Of Hetai

Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.

Changzhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to providing professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as an assembly line, Automatic cylindrical grinder, and CNC machining centers as well.

Products Range Of Hetai

Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Changzhou Hetai Electric Appliance Co., Ltd. is a micro-motor manufacturing enterprise with strong technical strength. Specializing in the production of various stepper motors, stepper motor drivers, brushless DC motors, etc., with an annual output of 3 million units! Products are mainly used in printers, ticket printing machines, engraving machines, medical instruments, stage lighting, the textile industry, and other industries of automation equipment and instruments.

Market Range of Hetai

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

Certificate Of Hetai

When it comes to the quality aspect, Hetai was qualified by ISO Certificate, CE, Reach and  Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and development strength. With the support of a professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Awards as well as other awards during the years.

Overall, Hetai always puts customer needs a first place. Not only supplying a quality products, we believe to help customers make better product is the most important mission.
