42MM Nema 17 Brushless 24V Dc Motor With Gearbox 42BLY203 Series For Lawn Mower

Ask Lasest Price
Brand Name :	HeTai
Model Number :	42BLY02+gearbox
Certification :	CE ROHS ISO
Price :	USD
Payment Terms :	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000 PCS/MONTH
Delivery Time :	25 DAYS

Add to Cart

Product Details
Company Profile

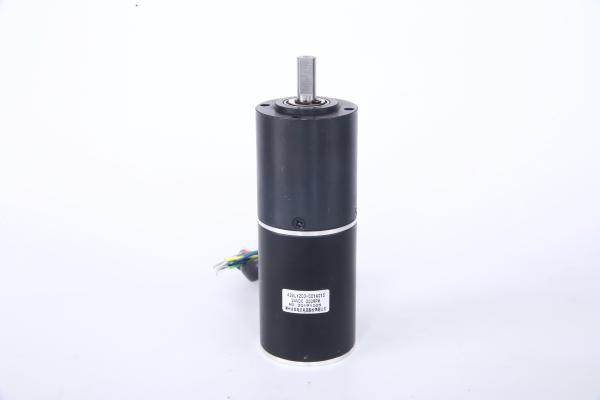

42MM Nema 17 Brushless 24V Dc Motor With Gearbox 42BLY203 Series For Lawn Mower

42MM Nema 17 Brushless 24V Dc Motor With Gearbox 42BLY203 Series For Lawn Mower

The planetary gearbox motor is consist of a gearbox and a BLDC motor, the specification of the motor is as follows:

		Model
Specification	Unit	42BLY02
Number Of Phases	Phase	3
Number Of Poles	Poles	4
Rated Voltage	VDC	24
Rated Speed	Rpm	3000
Rated Current	A	1.77
Rated Torque	N.m	0.08
Rated Power	W	25
Peak Torque	mN.m	0.24
Peak Current	Amps	5.3
Torque Constant	N.m/A	0.045
Back EMF constant	V/kRPM	4.7
Body Length	mm	60
Weight	Kg	0.38

*Products can be customized by special request.

The gearbox motor electrical data is as follows:

Model	Reduction ratio	Voltage	Speed	Gearbox Rated tolerance torque(Nm)	Gearbox Max momentary tolerance torque	Poles	Phase
Model	Reduction ratio	Voltage	Speed	Gearbox Rated tolerance torque(Nm)	Gearbox Max momentary tolerance torque	Poles	Phase
42BLY02 Series	4	24V	750RPM	1	3	4	3
	6		500RPM	1	3
	15		200RPM	4	12
	18		167RPM	4	12
	25		120RPM	4	12
	36		83RPM	4	12
	54		56RPM	8	25
	65		46RPM	8	25
	90		33RPM	8	25
	112		27RPM	8	25
	155		19RPM	8	25
	216		14RPM	10	30

Reduction 6 was applied to the lawnmower machine.

Wiring Diagram

ELECTRICAL CONNECTION TABLE
FUNCTION	COLOR
+5V	RED	UL1007 26AWG
HALL A	YELLOW
HALL B	GREEN
HALL C	BLUE
GND	BLACK
PHASE A	YELLOW	UL3265 22AWG
PHASE B	GREEN
PHASE C	BLUE

Mechanical Dimension

You can choose different gearbox from:

36mm Powder metallurgy

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Powder metallurgy	sleeve bearings	≤120	≤80	≤500	≤0.03	≤0.1	≤1.5

Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length (mm)	Weight(g)	Number of gear trains
1/4	0.3	1.0	81%	24.8	145	1
1/5
1/16	1.2	3.5	72%	32.4	173	2
1/20
1/25
1/53	2.5	7.5	65%	41.9	213	3
1/62
1/76
1/94
1/117

Mechanical Dimension

36mm Zinc alloy

Housing material

Bearing at output

Radial load(10mm from flange)N

Shaft axial load(N)

Shaft press-fit force max(N)

Radial play of shaft(mm)

Thrust play of shaft(mm)

Backlash at no-load (°)

Zinc alloy

Porous

bearings

≤45

≤25

≤100

≤0.08

≤0.4

≤1.5

Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length (mm)	Weight(g)	Number of gear trains
1/12	0.3	1.0	81%	26.8	100	1

Mechanical Dimension

Out diameter 42mm Powder metallurgy

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Powder metallurgy	sleeve bearings	≤120	≤80	≤500	≤0.03	≤0.1	≤1.5

Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length (mm)	Weight(g)	Number of gear trains
1/4	1.0	3.0	81%	32.5	170	1
1/6
1/15	4.0	12	72%	46.3	207	2
1/18
1/25
1/36
1/54	8.0	25	65%	60.1	267	3
1/65
1/90
1/112
1/155
1/216	10	30	65%	60.1	267

Mechanical Dimension
