Nema 11 Gearbox Stepper Motor High Torque 4.22V 0.67A

Ask Lasest Price
Brand Name :	HeTai
Model Number :	28YGH102-XXAG107
Certification :	CE ROHS ISO
Price :	USD
Payment Terms :	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000 PCS/MONTH
Delivery Time :	25 DAYS

Add to Cart

Product Details
Company Profile

Nema 11 Gearbox Stepper Motor High Torque 4.22V 0.67A

Nema 11 4.22V 0.67A 28YGH102-XXAG107 Cost-effective Gearbox Stepper Motor High Torque

Planetary gearboxes, also known as planetary gearboxes, are one of the most interesting types of gearboxes in motion control.

28YGH102-XXAG107 is one kind of micro motors.Its specific is low noise and high torque.The center of the input gear of the planetary gearbox rotates around the center of the output gear, and the input shaft and the output shaft are aligned. This shows that it is a gearbox with the same input and output rotation centers

This model is using a 28mm powder metallurgy gearbox, Design is quite complex thou they are efficient and still easy to maintain.

Electrical Specification

STEP ANGLE	°/STEP	1.8
RATED VOLTAGE	V	4.22
CURRENT	A/PHASE	0.67
RESISTANCE	Ω/PHASE	6.3
INDUCTANCE	mH/PHASE	3.7
HOLDING TORQUE	kg.cm	6
INSULATION CLASS		B

*Products can be customized by special request.

Wiring Diagram

Mechanical Dimension

Wiring Diagram

ELECTRICAL CONNECTION TABLE
FUNCTION	COLOR
+5V	RED	UL1007 26AWG
HALL A	GREEN
HALL B	BLUE
HALL C	WHITE
GND	BLACK
PHASE A	ORANGE
PHASE B	YELLOW
PHASE C	BROWN

GEARBOX Electrical Specification

Out diameter 28mm Powder metallurgy

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Powder metallurgy	sleeve bearings	≤80	≤30	≤200	≤0.03	≤0.4	≤1.5

Planetary gearbox 28 square type
Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length L (mm)	Weight(g)	Number of gear trains
1/3	0.2	0.6	81%	28.5	105	1
1/6

Planetary gearbox 28 round type
Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length L (mm)	Weight(g)	Number of gear trains
1/14	0.5	1.5	72%	29.8	92	1
1/30
1/64	1.8	5	65%	40	105	1
1/107

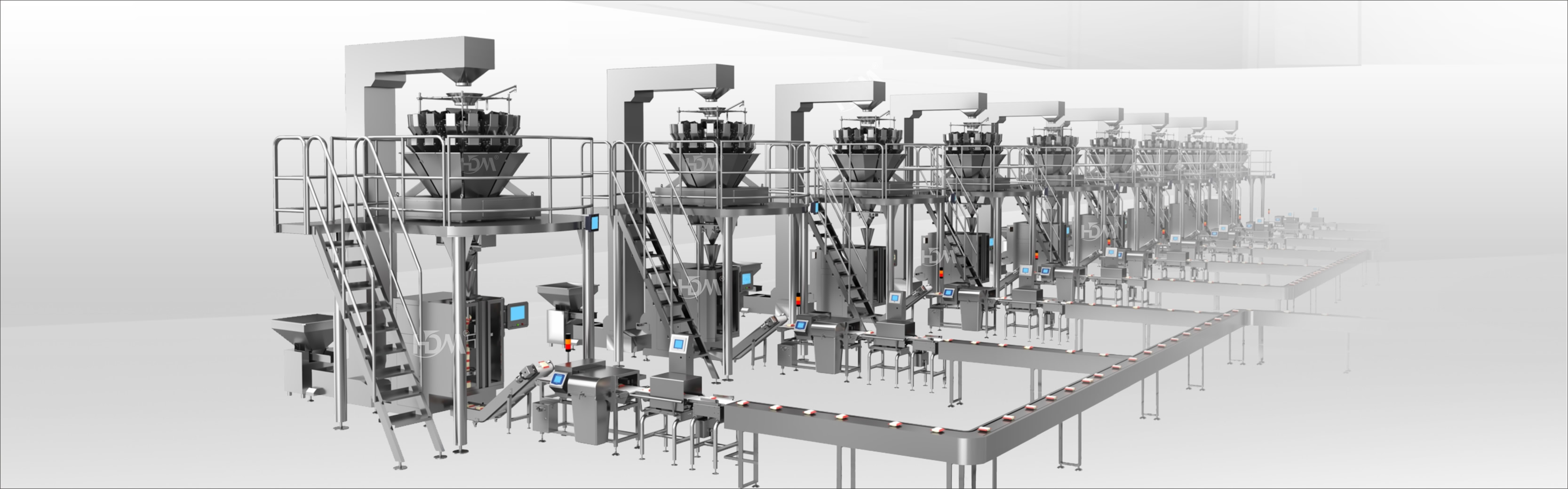

Multi-Head Food Scale step motor

Multi-head winding machine

The company dedicates to produce and design step motor, DC brushless motor, and gearbox motor. Please contact us directly if you're interested.
