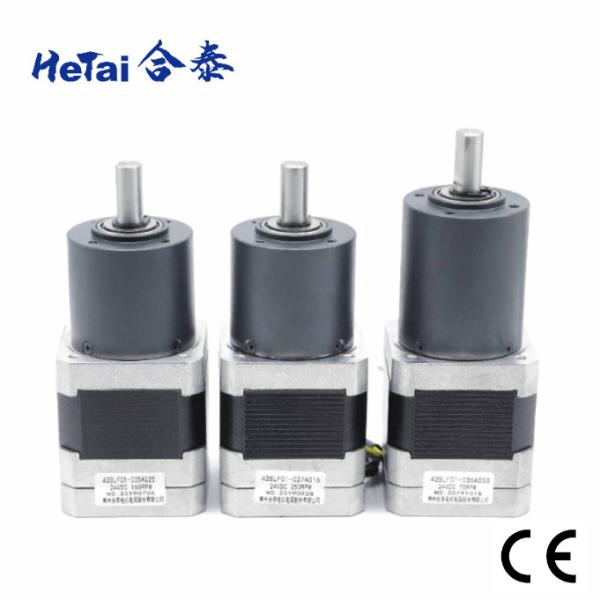

42BLF01-036AG53 Gearbox Brushless Motor Factory Supply Nema 17 0.5A 24V 2.2OHMS 42mm

Hetai always puts the needs of customers first. Not only provide high-quality products, we believe that helping customers make better products is the most important mission. In terms of quality, Hetai has obtained ISO certification, CE and Royal Honor certification. The quality of this product has also been recognized by many customers.

42BLF-036AG53 nema17 24V factory supply dc gearbox motor is suitable for robots packing machinery textline machinery medical instruments printing machinery and intelligent logistics. A gearbox—otherwise known as a gear reducer or speed reducer—is a set of gears that can be added to a motor to drastically decrease speed and/or increase torque. Each gearbox type works in unison with a motor to achieve the desired speed-torque output.

Electrical Specification

*Products can be customized by special request.

Wiring Diagram

Mechanical Dimension

Planetary Gearbox 36mm

Mechanical Dimension

Planetary Gearbox 42mm
Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length (mm)	Weight(g)	Number of gear trains
1/4	1.0	3.0	81%	32.5	170	1
1/6
1/15	4.0	12	72%	46.3	207	2
1/18
1/25
1/36
1/54	8.0	25	65%	60.1	267	3
1/65
1/90
1/112
1/155
1/216	10	30	65%	60.1	267

Planetary Gearbox 56mm
Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length L (mm)	Weight(g)	Number of gear trains
1/4	2.0	6.0	81%	41.3	491	1
1/6
1/15	8.0	25	72%	59.6	700	2
1/18
1/26
1/47	16	50	72%	59.6	700	2
1/66

Product Application

Certificate

Stepper motor ROHS report Date: June 09, 2021	BLDC Motor ROHS report Date: June 09, 2021	CE cetificate

IATF 16949: 2016 Valid until: 02 June 2024	ISO 9001: 2015 Valid until: 02 June 2024

Brushless Motor Final Inspection

Measure the Motor Length Measure the Shaft Length Measure the Ouler Circle

Measure the Screw Hole Measure the Length of Wire Measure the Length of PVC

Distance

Test the Resistance Listening Test the speed

FAQ

1.Are you factory?

Yes, we are factory. Our brand name Hetai is a well-known micro motor manufacturer for more than 20 years in
China. Main product including hybrid stepper motor, brushless DC motor, servo motor and planetary gearbox.

2. Do you have Other contact info?
Yes, please email us: info@ht-motor.com 3. How can we get your catalog?
Please visit below website to download it :https://new.ht-motor.net/index.php?m=content&c=index&a=lists&catid=136

3.Can I test sample?
Yes, samples and freight are charged.

4.Can I get Customized product?
Sure, all the products can be customized based in special request.

5.How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.

6. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept

7. Is this your final price? May i have the discount?
Our price is the factory price. If you have large quantity, we can negotiate about the discount.

8.What is the Warranty for your products?
Our warranty is for one year. If any quality problems occured on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
