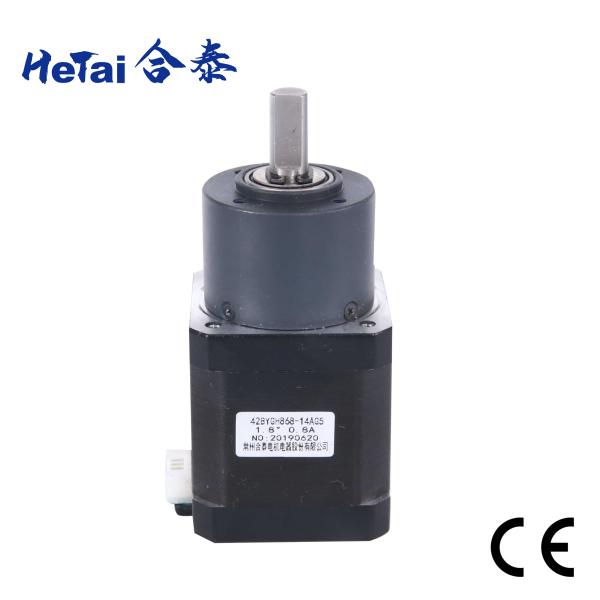

42BYGH868-14AG5 Gear Brushless Motor High Effciency Nema 17 1.8 Degree 0.8A With Gearbox

The brushless DC geared motor gearbox has the characteristics of light weight, large torque, low noise, long life and not easy to damage. The miniature brushless DC gear motor produced by Hetai is a general-purpose brushless DC motor with stable performance and matching, which is suitable for various fields.

It can save the R&D and product cost of customer enterprises and greatly shorten the customer's product development cycle and procurement supply cycle. The products are used in many industries such as intelligent kitchen and bathroom, intelligent medical drive gearbox, automobile intelligent drive, intelligent home drive, industrial intelligent drive, electronic product intelligent drive and solutions can be customized according to the different needs of customers.

Electrical Specification

*Products can be customized by special request.

Planetary Gearbox 36mm

Mechanical Dimension

Planetary Gearbox 42mm
Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length (mm)	Weight(g)	Number of gear trains
1/4	1.0	3.0	81%	32.5	170	1
1/6
1/15	4.0	12	72%	46.3	207	2
1/18
1/25
1/36
1/54	8.0	25	65%	60.1	267	3
1/65
1/90
1/112
1/155
1/216	10	30	65%	60.1	267

Planetary Gearbox 56mm
Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length L (mm)	Weight(g)	Number of gear trains
1/4	2.0	6.0	81%	41.3	491	1
1/6
1/15	8.0	25	72%	59.6	700	2
1/18
1/26
1/47	16	50	72%	59.6	700	2
1/66

Product Application

Certificate

Stepper motor ROHS report Date: June 09, 2021	BLDC Motor ROHS report Date: June 09, 2021	CE cetificate

IATF 16949: 2016 Valid until: 02 June 2024	ISO 9001: 2015 Valid until: 02 June 2024

QUALITY CONTROL PROCESS

Incoming Inspection
Measure Diameter	Measure Length	Measure Hardness
Stator Inspection

Measure Height	Measure Resistance	Test Waveform	Test phase	Test withstand voltage
Rotor Inspection
Rotor Positioning	Measure core thickness	Measure Rotor shaft length	Check motor misalignment	Measure the outer circle

FAQ

1.Are you factory?

Yes, we are factory. Our brand name Hetai is a well-known micro motor manufacturer for more than 20 years in
China. Main product including hybrid stepper motor, brushless DC motor, servo motor and planetary gearbox.

2. Do you have Other contact info?
Yes, please email us: info@ht-motor.com 3. How can we get your catalog?
Please visit below website to download it :https://new.ht-motor.net/index.php?m=content&c=index&a=lists&catid=136

3.Can I test sample?
Yes, samples and freight are charged.

4.Can I get Customized product?
Sure, all the products can be customized based in special request.

5.How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.

6. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept

7. Is this your final price? May i have the discount?
Our price is the factory price. If you have large quantity, we can negotiate about the discount.

8.What is the Warranty for your products?
Our warranty is for one year. If any quality problems occured on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
