Steppe Gearbox Nema 17 Customizable Stepper Motor 42BYGH 1.8 Degree 12 V 0.3 A

Since stepper motors and other control motors are designed to allow accurate positioning, the gearheads used for these motors must provide the same level of accuracy. Accordingly, Hetai Motor has developed a mechanism to minimize backlash in gears used with stepper motors in order to ensure low backlash properties.

Generally speaking, a stepper motor features greater output torque than an AC motor of the same frame size. Therefore, the stepper motor is designed to accommodate high torque and high speed so as not to diminish the motor's characteristics.

Electrical Specification:

Planetary Gearbox 36mm

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Powder Metallurgy	Ball Bearings	≤120	≤80	≤500	≤0.03	≤0.1	≤1.5

Number Of Gearbox Trains	1	2	3
Reduction Ratio	1/5	1/14,1/16,1/20,1/25	1/53,1/62,1/76,1/94,1/117
Length(mm)	24.8	32.4	41.9
Weight(g)	145.0	173.0	213.0

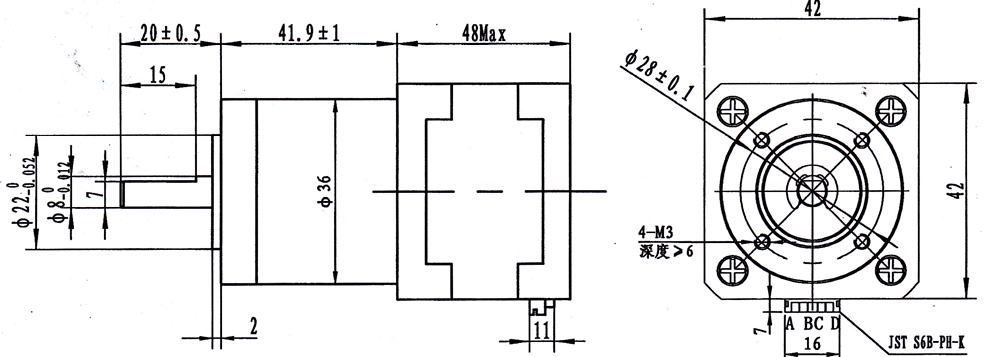

Mechanical Dimension

Other Gearbox Ratio

Planetary Gearbox 42mm
Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length (mm)	Weight(g)	Number of gear trains
1/4	1.0	3.0	81%	32.5	170	1
1/6
1/15	4.0	12	72%	46.3	207	2
1/18
1/25
1/36
1/54	8.0	25	65%	60.1	267	3
1/65
1/90
1/112
1/155
1/216	10	30	65%	60.1	267

Planetary Gearbox 56mm
Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length L (mm)	Weight(g)	Number of gear trains
1/4	2.0	6.0	81%	41.3	491	1
1/6
1/15	8.0	25	72%	59.6	700	2
1/18
1/26
1/47	16	50	72%	59.6	700	2
1/66

Gearbox Production

Gearbox Assmenbly	Mass Produstion	Gearbox Motor Aging Test

Certificate

Stepper motor ROHS report Date: June 09, 2021	BLDC Motor ROHS report Date: June 09, 2021	CE cetificate

IATF 16949: 2016 Valid until: 02 June 2024	ISO 9001: 2015 Valid until: 02 June 2024
