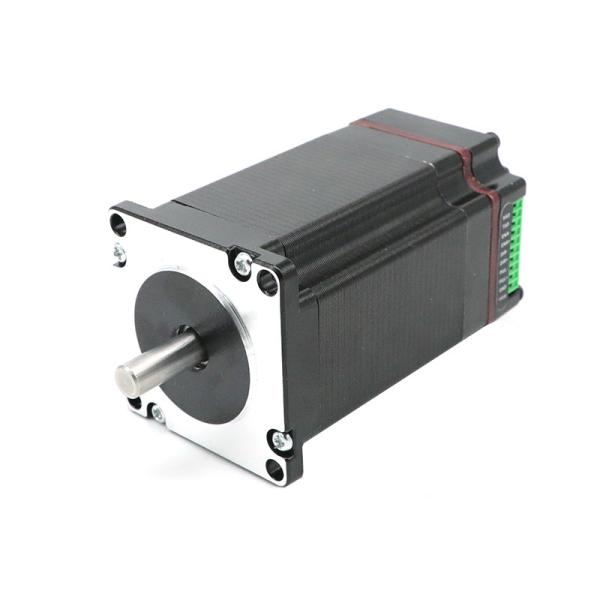

    Nema23 High Quality Integrated Stepper Motor 4 Wires 57mm

    Ask Lasest Price
    Brand Name : HeTai
    Model Number : 57BYGH
    Certification : CE ROHS ISO
    Price : USD
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000 PCS/MONTH
    Delivery Time : 28-31 DAYS
    • Product Details
    • Company Profile

    Nema23 High Quality Integrated Stepper Motor 4 Wires 57mm

    Factory Bulk Sale 57mm Nema23 High Quality Integrated Stepper Motor 4 Wires


    The ADVANTAGE of Integrated Stepper Motor:

    The motor 57BYGH was consist of a nema17 stepper motor and a driver, which is a kind of Integrated Pulse open-loop stepper motor.

    The advantages of the integrated step motors are user-friendly, space-saving, high torque at low speeds, and Low vibration, low noise, smooth operation.


    Electrical characteristics

    ExplanationIO57
    Minimum ValueTypical ValueMaximal ValueUnit
    Continuous output current1.0-5.6A
    Power Supply Voltage (DC)1524/3650Vdc
    Control signal input current61016mA
    Control signal input current-5-Vdc
    Minimum time width of pulse high level1.5--US
    Overvoltage point52Vdc
    Step frequency0-200KHz
    Insulation Resistance100


    Wiring Diagram

    Nema23 High Quality Integrated Stepper Motor 4 Wires 57mm


    Mechanical Dimension Of Integrated Stepper Motor

    Nema23 High Quality Integrated Stepper Motor 4 Wires 57mm


    Product Range Of Hetai

    Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

    ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.


    Market Range of Hetai

    China Changzhou Hetai Motor And Electric Appliance Co., Ltd. company profile 5

    Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

    From China to Overseas
    Europe:France,Germany,Italy,Spain, Norway etc.
    North America: USA,Canada

    Materials Of Hetai

    Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 2


    Assembly Line Of Stepper Motor


    CNC Machining Center

    Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 5

    Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 6

    Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 7


    Packing&Delivery

    Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 16
