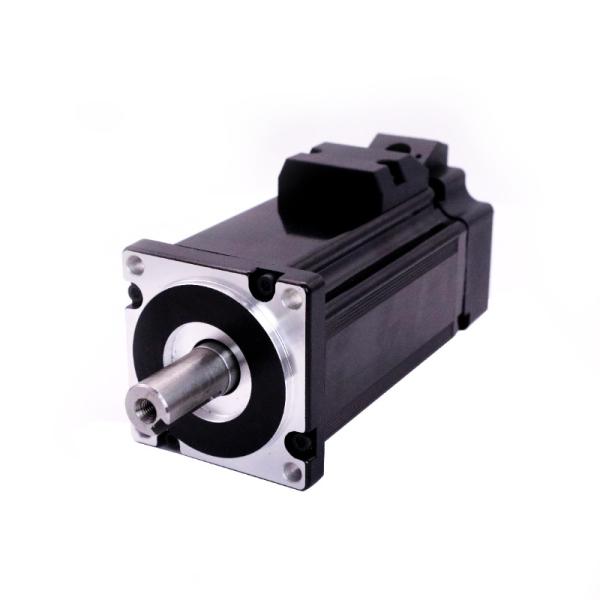

High Performance Low Voltage 24V 48V Dc Brushless Servo Motor 60mm

Ask Lasest Price
Brand Name :	HeTai
Model Number :	ES60
Certification :	CE ROHS ISO
Price :	USD
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000 PCS/MONTH
Delivery Time :	28-31 DAYS

Add to Cart

Product Details
Company Profile

High Performance Low Voltage 24V 48V Dc Brushless Servo Motor 60mm

Factory supply 60mm high performance Low voltage 24V 48V dc brushless servo motor

A servo motor is controlled by controlling its position using Pulse Width Modulation Technique. The width of the pulse applied to the motor is varied and send for a fixed amount of time.

The pulse width determines the angular position of the servo motor. For example, a pulse width of 1 ms causes an angular position of 0 degrees, whereas a pulse width of 2 ms causes an angular width of 180 degrees.

Electrical Specification Of Servo Motor

24V Servo Motor

Rated Voltage(V)	24
Rated Power(W)	100	200	400	600
Model	ES6005K-10S30L3	ES6005K-20D30L1 ES6005K-20D30L2	ES6005K-40D30L1 ES6005K-40D30L2	ES6005K-60D30L1
Rated Current(Amps)	5.6	12.7	25	38
Rated Speed(RPM)	3000	3000	3000	3000
Rated Torque(N.M)	0.32	0.64	1.27	1.90
Maximum Torque(N.M)	0.96	1.91	3.81	5.70
Torque Constant(N.M/Amps)	0.057	0.05	0.054	0.054
Rotor Moment Of Inertia(Kg.cm2)	0.15*10-4	0.42*10-4	0.67*10-4	0.95*10-4
Resistance Line-line(Ω)	0.27	0.135	0.07	0.035
Inductance Line-line(mH)	0.60	0.28	0.18	0.06

48V Servo Motor

Rated Voltage(V)	48
Rated Power(W)	200	400	600
Model	ES6005G-20D30L1 ES6005G-20D30L2	ES6005G-40D30L1 ES6005G-40D30L2	ES6005G-60D30L2
Rated Current(Amps)	8	11	16
Rated Speed(RPM)	3000	3000	3000
Rated Torque(N.M)	0.64	1.27	1.90
Maximum Torque(N.M)	1.91	3.81	5.70
Torque Constant(N.M/Amps)	0.09	0.12	0.12
Rotor Moment Of Inertia(Kg.cm2)	0.42*10-4	0.67*10-4	0.95*10-4
Resistance Line-line(Ω)	0.4	0.16	0.07
Inductance Line-line(mH)	1.0	0.28	0.10

No Brake Series

High Performance Low Voltage 24V 48V Dc Brushless Servo Motor 60mm

With Brake Series

Length & Weight

Type			60
Encoder			Power
Encoder			100W	200W	400W	600W
Length (mm)	Single turn absolute value (Tamagawa)	No Brake	91±1	101±1	121±1	141±1
	Single turn absolute value (Tamagawa)	With Brake	125±1	135±1	155±1	175±1
	Multi turn absolute value (Tamagawa)	No Brake	106±1	116±1	136±1	156±1
	Multi turn absolute value (Tamagawa)	With Brake	140±1	150±1	170±1	190±1
	Incremental 2500ppr (Optical encoder)	No Brake	106±1	116±1	136±1	156±1
	Incremental 2500ppr (Optical encoder)	With Brake	140±1	150±1	170±1	190±1
	Rotary transformer	No Brake	91±1	101±1	121±1	141±1
	Rotary transformer	With Brake	125±1	135±1	155±1	175±1
	Nikon multi turn absolute value	No Brake	91±1	101±1	121±1	141±1
	Nikon multi turn absolute value	With Brake	125±1	135±1	155±1	175±1

Type			60
Encoder			Power
Encoder			100W	200W	400W	600W
Weight (kg)	Single turn absolute value (Tamagawa)	No Brake	0.51	1.00	1.28	2.00
	Single turn absolute value (Tamagawa)	With Brake	0.95	1.46	1.85	2.50
	Multi turn absolute value (Tamagawa)	No Brake	0.57	1.10	1.42	2.10
	Multi turn absolute value (Tamagawa)	With Brake	1.00	1.50	1.86	2.70
	Incremental 2500ppr (Optical encoder)	No Brake	0.63	1.05	1.35	2.10
	Incremental 2500ppr (Optical encoder)	With Brake	1.00	1.25	1.80	2.70
	Rotary transformer	No Brake	0.77	1.26	1.63	2.00
	Rotary transformer	With Brake	1.20	1.68	2.00	2.50
	Nikon multi turn absolute value	No Brake	0.50	0.85	1.23	2.00
	Nikon multi turn absolute value	With Brake	0.94	1.23	1.65	2.50

T-N Curve

Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Servo Motor Of HeTai

High Performance Low Voltage 24V 48V Dc Brushless Servo Motor 60mm

Assembly Line Of Servo Motor

High Performance Low Voltage 24V 48V Dc Brushless Servo Motor 60mm

Laser Welding Machine

High Performance Low Voltage 24V 48V Dc Brushless Servo Motor 60mm

Hetai is aiming to provide high-quality, comprehensive after-sales service. Strive for continuous improvement and excellence. If you have any questions, you will be on duty 24 hours a day, so you have no worries.

Looking forward to the future, we will work hard to create with a good attitude and serious attitude, meet the challenges of modern high-tech, and continue to expand our business areas to share the achievements of automation technology with more customers!

Patent Certificate Of Hetai

High Performance Low Voltage 24V 48V Dc Brushless Servo Motor 60mm
