High Quality Low Voltage 24V 48V Dc Brushless Servo Motor 40mm 3000RPM

Ask Lasest Price
Brand Name :	HeTai
Model Number :	ES40
Certification :	CE ROHS ISO
Price :	USD
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000 PCS/MONTH
Delivery Time :	28-31 DAYS

Add to Cart

Product Details
Company Profile

High Quality Low Voltage 24V 48V Dc Brushless Servo Motor 40mm 3000RPM

Factory direct sale 40mm high quality Low voltage 24V 48V 3000RPM dc brushless servo motor

As we know that any electrical motor can be utilized as servo motor if it is controlled by servomechanism. Likewise, if we control a DC motor by means of servomechanism, it would be referred as DC servo motor. There are different types of DC motor, such shunt wound DC motor, series DC motor, Separately excited DC motor, permanent magnet DC motor etc. Among all mainly separately excited DC motor, permanent magnet DC motor and brush less DC motor are used as servo.

Electrical Specification Of Servo Motor

24V Servo Motor

Rated Voltage(V)	24
Rated Power(W)	50	100
Model	ES4005G-05S30N1 ES4005G-05S30N2	ES4005G-10S30N1-T ES4005G-10S30N2-001
Rated Current(Amps)	3.2	6.2
Rated Speed(RPM)	3000	3000
Rated Torque(N.M)	0.16	0.32
Maximum Torque(N.M)	0.48	0.96
Torque Constant(N.M/Amps)	0.05	0.05
Rotor Moment Of Inertia (Kg.cm2)	0.027	0.027
Resistance Line-line(Ω)	1.20	0.58
Inductance Line-line(mH)	1.10	0.43

48V Servo Motor

Rated Voltage(V)	48
Rated Power(W)	50	100
Model	ES4005K-05S30N1 ES4005K-05S30N2	ES4005K-10S30N1-T ES4005K-10S30N2-001
Rated Current(Amps)	1.6	3.5
Rated Speed(RPM)	3000	3000
Rated Torque(N.M)	0.16	0.32
Maximum Torque(N.M)	0.48	0.96
Torque Constant(N.M/Amps)	0.10	0.10
Rotor Moment Of Inertia (Kg.cm2)	0.045	0.045
Resistance Line-line(Ω)	0.58	1.30
Inductance Line-line(mH)	0.43	1.20

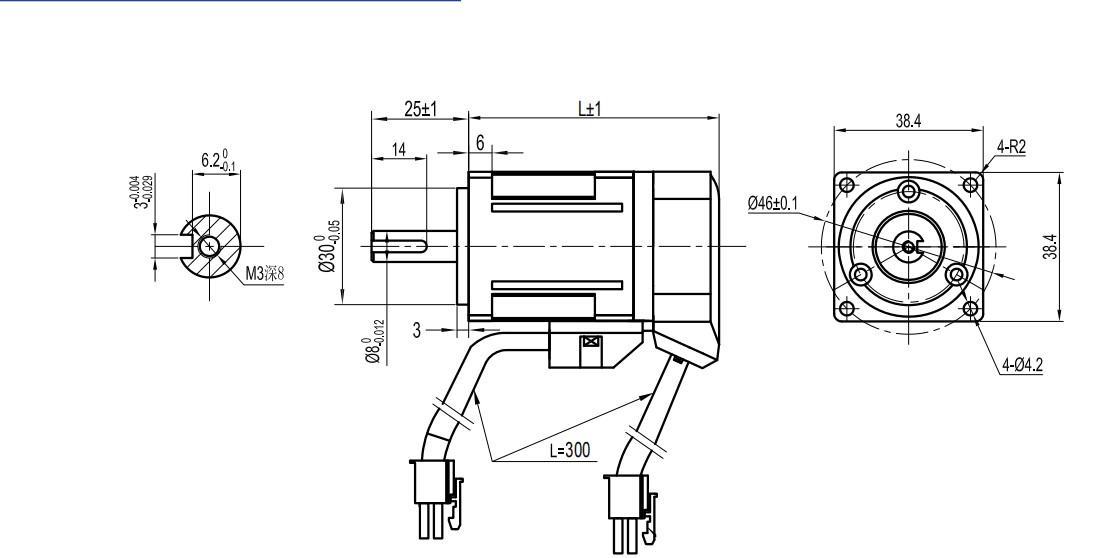

No Brake Series

High Quality Low Voltage 24V 48V Dc Brushless Servo Motor 40mm 3000RPM

With Brake Series

Length & Weight

Type			40
Encoder			Power
Encoder			50W	100W
Length (mm)	Single turn absolute value (Tamagawa)	No Brake	72±1	92±1
	Single turn absolute value (Tamagawa)	With Brake	102±1	127±1
	Multi turn absolute value (Tamagawa)	No Brake	77±1	97±1
	Multi turn absolute value (Tamagawa)	With Brake	107±1	127±1
	Nikon multi turn absolute value	No Brake	65±1	80±1
	Nikon multi turn absolute value	With Brake	95±1	110±1
	Rotary transformer	No Brake	77±1	92±1
	Rotary transformer	With Brake	107±1	127±1
	Incremental 2500ppr (Optical encoder)	No Brake	77±1	97±1
	Incremental 2500ppr (Optical encoder)	With Brake	107±1	127±1

Type			40
Encoder			Power
Encoder			50W	100W
Weight (Kg)	Single turn absolute value(Tamagawa)	No Brake	0.36	0.50
	Single turn absolute value(Tamagawa)	With Brake	0.62	0.72
	Multi turn absolute value(Tamagawa)	No Brake	0.35	0.52
	Multi turn absolute value(Tamagawa)	With Brake	0.62	0.72
	Nikon multi turn absolute value	No Brake	0.35	0.65
	Nikon multi turn absolute value	With Brake	0.65	0.65
	Rotary transformer	No Brake	0.62	0.77
	Rotary transformer	With Brake	0.83	1.00
	Incremental 2500ppr (Optical encoder)	No Brake	0.42	0.60
	Incremental 2500ppr (Optical encoder)	With Brake	0.70	0.80

T-N Curve

Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Servo Motor Of HeTai

High Quality Low Voltage 24V 48V Dc Brushless Servo Motor 40mm 3000RPM

Assembly Line Of Servo Motor

High Quality Low Voltage 24V 48V Dc Brushless Servo Motor 40mm 3000RPM

Laser Welding Machine

High Quality Low Voltage 24V 48V Dc Brushless Servo Motor 40mm 3000RPM

Hetai is aiming to provide high-quality, comprehensive after-sales service. Strive for continuous improvement and excellence. If you have any questions, you will be on duty 24 hours a day, so you have no worries.

Looking forward to the future, we will work hard to create with a good attitude and serious attitude, meet the challenges of modern high-tech, and continue to expand our business areas to share the achievements of automation technology with more customers!

Patent Certificate Of Hetai

High Quality Low Voltage 24V 48V Dc Brushless Servo Motor 40mm 3000RPM
