Low Voltage 48V Dc Brushless Servo Motor Customizable 110mm

Ask Lasest Price
Brand Name :	HeTai
Model Number :	ES110
Certification :	CE ROHS ISO
Price :	USD
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000 PCS/MONTH
Delivery Time :	28-31 DAYS

Add to Cart

Product Details
Company Profile

Low Voltage 48V Dc Brushless Servo Motor Customizable 110mm

110mm Low voltage servo motor customizable 48V dc brushless servo motor

The servo motor can control the speed, the position accuracy is very accurate, and the voltage signal can be converted into torque and speed to drive the control object. The rotor speed of the servo motor is controlled by the input signal and can respond quickly. In the automatic control system, it is used as an executive element, and has the characteristics of small electromechanical time constant and high linearity, which can convert the received electrical signal into the motor shaft. angular displacement or angular velocity output.

Electrical Specification Of Servo Motor

Rated Voltage(V)	48
Rated Power(W)	1000	1500
Model	ES11005G-100S30L1 ES11005G-100S30L2	ES11005G-150S30L1 ES11005G-150S30L2
Rated Current(Amps)	32	47
Rated Speed(RPM)	3000	3000
Rated Torque(N.M)	3.2	4.7
Maximum Torque(N.M)	9.6	14.1
Torque Constant(N.M/Amps)	0.1	0.1
Rotor Moment Of Inertia(Kg.cm2)	0.76*10-3	0.96*10-3
Resistance Line-line(Ω)	0.04	0.015
Inductance Line-line(mH)	0.50	0.15

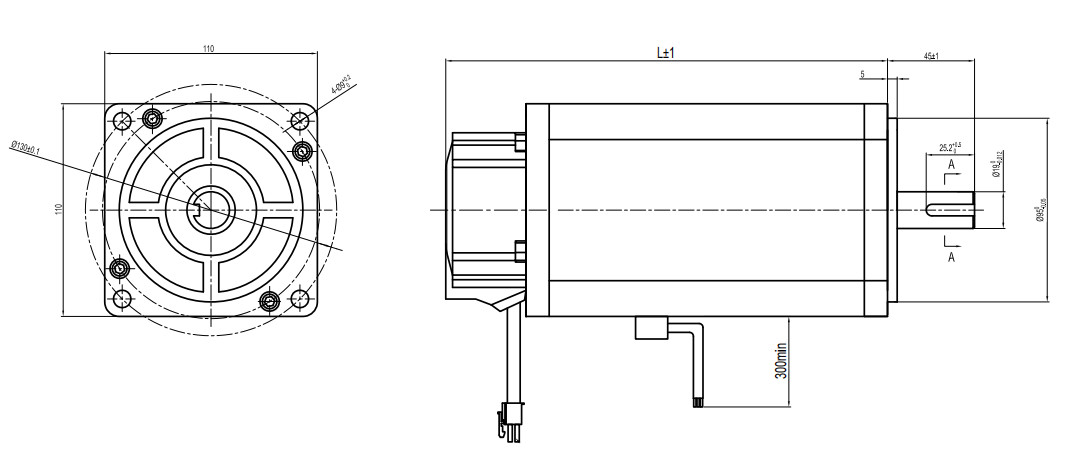

No Brake Series

Low Voltage 48V Dc Brushless Servo Motor Customizable 110mm

With Brake Series

Length & Weight

Type			110
Encoder			Power
Encoder			1000W	1500W
Length (mm)	Single turn absolute value (Tamagawa)	No Brake	190±1	211±1
	Single turn absolute value (Tamagawa)	With Brake	225±1	246±1
	Multi turn absolute value (Tamagawa)	No Brake	174±1	195±1
	Multi turn absolute value (Tamagawa)	With Brake	209±1	230±1
	Incremental 2500ppr (Optical encoder)	No Brake	174±1	195±1
	Incremental 2500ppr (Optical encoder)	With Brake	209±1	230±1
	Rotary transformer	No Brake	190±1	211±1
	Rotary transformer	With Brake	225±1	246±1
	Nikon multi turn absolute value	No Brake	190±1	211±1
	Nikon multi turn absolute value	With Brake	225±1	246±1

Type			110
Encoder			Power
Encoder			1000W	1500W
Weight (kg)	Single turn absolute value (Tamagawa)	No Brake	5.3	5.5
	Single turn absolute value (Tamagawa)	With Brake	6.3	6.5
	Multi turn absolute value (Tamagawa)	No Brake	5.0	5.3
	Multi turn absolute value (Tamagawa)	With Brake	6.0	6.3
	Incremental 2500ppr (Optical encoder)	No Brake	5.0	5.3
	Incremental 2500ppr (Optical encoder)	With Brake	6.0	6.3
	Rotary transformer	No Brake	5.3	5.5
	Rotary transformer	With Brake	6.3	6.5
	Nikon multi turn absolute value	No Brake	5.3	5.5
	Nikon multi turn absolute value	With Brake	6.3	6.5

T-N Curve

Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Servo Motor Of HeTai

Low Voltage 48V Dc Brushless Servo Motor Customizable 110mm

Automatic Assembly Line Of Servo Motor

Low Voltage 48V Dc Brushless Servo Motor Customizable 110mm

Laser Welding Machine

Low Voltage 48V Dc Brushless Servo Motor Customizable 110mm

Hetai is aiming to provide high-quality, comprehensive after-sales service. Strive for continuous improvement and excellence. If you have any questions, you will be on duty 24 hours a day, so you have no worries.

Looking forward to the future, we will work hard to create with a good attitude and serious attitude, meet the challenges of modern high-tech, and continue to expand our business areas to share the achievements of automation technology with more customers!

Patent Certificate Of Hetai

Low Voltage 48V Dc Brushless Servo Motor Customizable 110mm
