Low Voltage 24V 48V Dc Brushless Servo Motor 80mm

Ask Lasest Price
Brand Name :	HeTai
Model Number :	ES80
Certification :	CE ROHS ISO
Price :	USD
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000 PCS/MONTH
Delivery Time :	28-31 DAYS

Add to Cart

Product Details
Company Profile

Low Voltage 24V 48V Dc Brushless Servo Motor 80mm

Low Voltage Servo Motor 24V 48V Dc Brushless Servo Motor 80mm

A servo motor is composed of:

An electric motor: That is in charge of generating the motion through its shaft.

A control system: This system allows for control over the motor’s motion by sending electric pulses.

A drive system: It is formed by gears which may increase or decrease the speed and torque.

A potentiometer: It is connected to the central shaft, and informs at all times the angle in which the motor’s shaft is positioned.

Electrical Specification Of Servo Motor

24V Servo Motor

Rated Voltage(V)	24
Rated Power(W)	750
Model	ES8005K-75S30M1
Rated Current(Amps)	40
Rated Speed(RPM)	3000
Rated Torque(N.M)	2.38
Maximum Torque(N.M)	7.14
Torque Constant(N.M/Amps)	0.057
Rotor Moment Of Inertia(Kg.cm2)	1.51*10-4
Resistance Line-line(Ω)	0.03
Inductance Line-line(mH)	0.20

48V Servo Motor

Rated Voltage(V)	48
Rated Power(W)	750	1000
Model	ES8005G-75S30A1 ES8005G-75S30B2	ES8005G-100S30A1 ES8005G-100S30B2-002
Rated Current(Amps)	25	33
Rated Speed(RPM)	3000	3000
Rated Torque(N.M)	2.4	3.2
Maximum Torque(N.M)	7.2	9.6
Torque Constant(N.M/Amps)	0.1	0.115
Rotor Moment Of Inertia(Kg.cm2)	1.51*10-4	2.5*10-4
Resistance Line-line(Ω)	0.07	0.03
Inductance Line-line(mH)	0.60	0.30

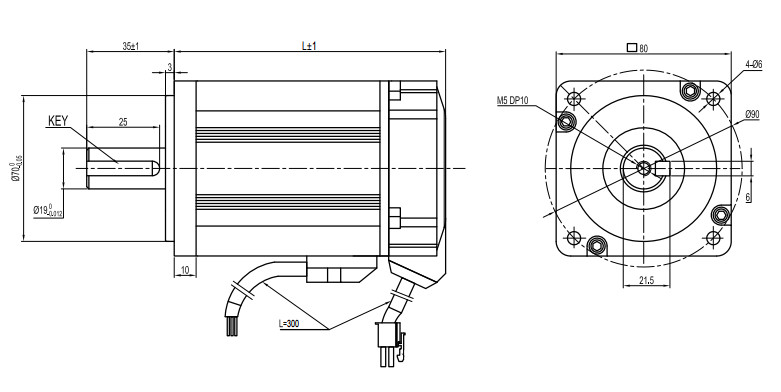

No Brake Series

Low Voltage 24V 48V Dc Brushless Servo Motor 80mm

With Brake Series

Length & Weight

Type			80
Encoder			Power
Encoder			750W	1000W
Length (mm)	Single turn absolute value (Tamagawa)	No Brake	125±1	140±1
	Single turn absolute value (Tamagawa)	With Brake	163±1	178±1
	Multi turn absolute value (Tamagawa)	No Brake	141±1	156±1
	Multi turn absolute value (Tamagawa)	With Brake	179±1	194±1
	Incremental 2500ppr (Optical encoder)	No Brake	141±1	156±1
	Incremental 2500ppr (Optical encoder)	With Brake	179±1	194±1
	Rotary transformer	No Brake	125±1	140±1
	Rotary transformer	With Brake	163±1	178±1
	Nikon multi turn absolute value	No Brake	125±1	140±1
	Nikon multi turn absolute value	With Brake	163±1	178±1

Type			80
Encoder			Power
Encoder			750W	1000W
Weight (kg)	Single turn absolute value (Tamagawa)	No Brake	2.42	3.00
	Single turn absolute value (Tamagawa)	With Brake	3.50	4.00
	Multi turn absolute value (Tamagawa)	No Brake	2.42	3.00
	Multi turn absolute value (Tamagawa)	With Brake	3.50	4.05
	Incremental 2500ppr (Optical encoder)	No Brake	2.43	3.00
	Incremental 2500ppr (Optical encoder)	With Brake	3.50	4.06
	Rotary transformer	No Brake	2.63	3.20
	Rotary transformer	With Brake	3.70	4.27
	Nikon multi turn absolute value	No Brake	2.37	2.93
	Nikon multi turn absolute value	With Brake	3.43	4.00

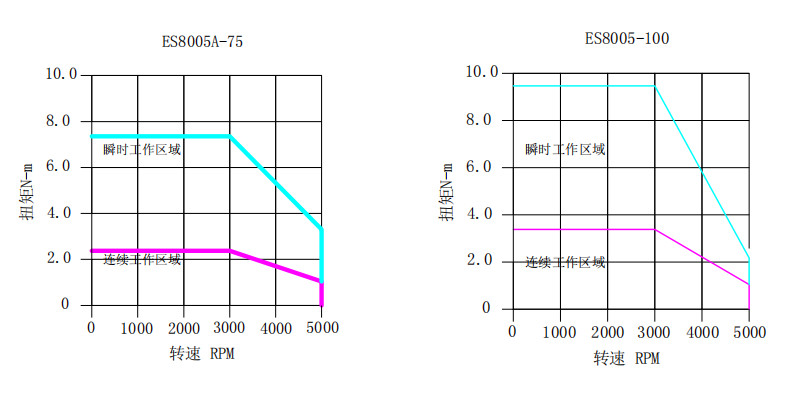

T-N Curve
