Low Voltage Brushless Dc Servo Motors 130mm

Ask Lasest Price
Brand Name :	HeTai
Model Number :	ES130
Certification :	CE ROHS ISO
Price :	USD
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000 PCS/MONTH
Delivery Time :	28-31 DAYS

Add to Cart

Product Details
Company Profile

Low Voltage Brushless Dc Servo Motors 130mm

Factory Direct Sale 130mm Low Voltage Brushless Servo Motor Dc Servo Motors

The servo motor can control the speed, the position accuracy is very accurate, and the voltage signal can be converted into torque and speed to drive the control object. The rotor speed of the servo motor is controlled by the input signal and can respond quickly. In the automatic control system, it is used as an executive element, and has the characteristics of small electromechanical time constant and high linearity, which can convert the received electrical signal into the motor shaft. angular displacement or angular velocity output.

Electrical Specification Of Servo Motor

Rated Voltage(V)	48
Rated Power(W)	1000	1500	2000
Model	ES13005G-100D20M1	ES13005G-150D20M1	ES13005G-200D20M1
Rated Current(Amps)	31	48	63
Rated Speed(RPM)	2000	2000	2000
Rated Torque(N.M)	4.7	7.2	9.5
Maximum Torque(N.M)	14.1	21.6	28.5
Torque Constant(N.M/Amps)	0.15	0.15	0.15
Rotor Moment Of Inertia(Kg.cm2)	4.5*10^-4	6.7*10^-4	8.9*10^-4
Resistance Line-line(Ω)	0.1	0.05	0.03
Inductance Line-line(mH)	1.0	0.60	0.3

Low Voltage Brushless Dc Servo Motors 130mm

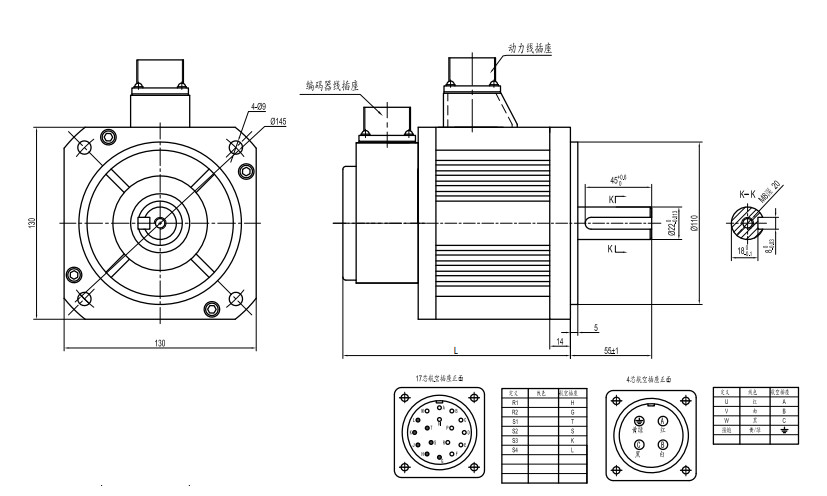

Length & Weight

Type			130
Encoder			Power
Encoder			1000W	1500W	2000W
Length (mm)	Multi turn absolute value(Tamagawa)	No Brake	144±1	157±1	171±1
	Multi turn absolute value(Tamagawa)	With Brake	183±1	196±1	210±1
	Rotary transformer	No Brake	144±1	157±1	171±1
	Rotary transformer	With Brake	183±1	196±1	210±1
	Incremental 2500ppr (Optical encoder)	No Brake	144±1	157±1	171±1
	Incremental 2500ppr (Optical encoder)	With Brake	183±1	196±1	210±1

Type			130
Encoder			Power
Encoder			1000W	1500W	2000W
Weight (kg)	Multi turn absolute value(Tamagawa)	No Brake	5.0	6.1	7.2
	Multi turn absolute value(Tamagawa)	With Brake	7.3	8.4	9.5
	Rotary transformer	No Brake	5.2	6.3	7.4
	Rotary transformer	With Brake	7.4	8.6	9.7
	Incremental 2500ppr (Optical encoder)	No Brake	5.0	6.1	7.2
	Incremental 2500ppr (Optical encoder)	With Brake	7.3	8.4	9.5

T-N Curve

2000RPM

3000RPM

Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Servo Motor Of HeTai

Low Voltage Brushless Dc Servo Motors 130mm

Automatic Assembly Line Of Servo Motor

Low Voltage Brushless Dc Servo Motors 130mm

Laser Welding Machine

Low Voltage Brushless Dc Servo Motors 130mm

Hetai is aiming to provide high-quality, comprehensive after-sales service. Strive for continuous improvement and excellence. If you have any questions, you will be on duty 24 hours a day, so you have no worries.

Looking forward to the future, we will work hard to create with a good attitude and serious attitude, meet the challenges of modern high-tech, and continue to expand our business areas to share the achievements of automation technology with more customers!

Package&Delivery
