Integrated Stepper Motor With Driver Open Loop Or Closed Loop Control

Ask Lasest Price
Brand Name :	HeTai
Model Number :	57BYGH443-XXB
Certification :	CE ROHS ISO
Price :	USD
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000 PCS/MONTH
Delivery Time :	28-31 DAYS

Add to Cart

Product Details
Company Profile

Integrated Stepper Motor With Driver Open Loop Or Closed Loop Control

57BYGH443-XXB integrated stepper motor with driver open-loop or closed-loop control with 485 communication

The integrated stepping system is composed of stepping motor, feedback system (optional), drive amplifier, motion controller and other subsystems. If the user's host computer (PC, PLC, etc.) is compared to the company boss, the motion controller is the executive, the drive amplifier is the mechanic, and the stepper motor is the machine tool. The boss coordinates cooperation among several executives through some form of communication/protocol (telephone, telegram, email, etc.).

Electrical Specification Of Hybrid Stepper Motor

Product Name	Hybrid Stepper Motor
Step Accuracy	± 5%
Dielectric Strength	500V AC 1minute
Ambient Temperature	-20℃~50℃
Insulation resistance	100MΩ Min.500VDC
Step Angle	1.8°
Lead wire	4
Voltage (V)	1.68
Current (A/Phase)	4.2
Holding Torque (Kg.cm)	0.85 Kg.cm

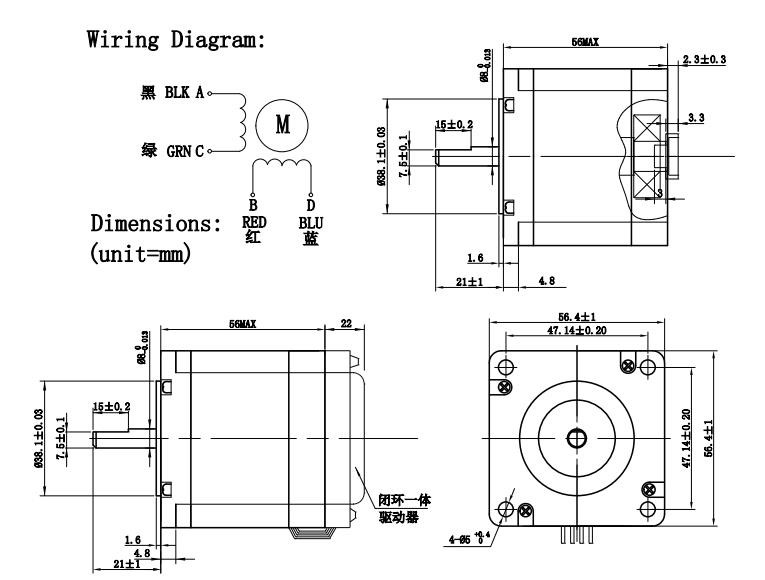

Mechanical Dimension Of Hybrid Stepper Motor

Integrated Stepper Motor With Driver Open Loop Or Closed Loop Control

Driver with 485 communication

Explanation	IRC57N
	Minimum Value	Typical Value	Maximal Value	Unit
Continuous output current	0.7	4	6.0	A
Power supply voltage (DC)	15	24	50	Vdc
control method	RS485 communication fully isolated electrical module design
RS485 communication frequency communication	Up to 1MHz, recommended within 200KHz
Left and right limit control signal input current	6	10	16	mA
Left and right limit control signal input voltage, need 24V, . A 2KΩ/1W resistor can be connected in series with the common terminal of the common anode	-	5	-	Vdc
Control signal pulse high level minimum time width	1.5	-	-	US
overvoltage point		55		Vdc
Insulation resistance	100			MΩ

Driver usage environment

Cooling Mode		Natural cooling or forced air cooling
Use environment	Occasion	Do not place it next to other heat-generating equipment. Avoid dust, oil mist, and corrosive gases. In places with high humidity and strong vibration, combustible gas and conductive dust are prohibited.
	Temperature	-10℃ ～ +50℃
	Humidity	40 ～ 90%RH
	Vibration	5.9m/s2MAX
Storage temperature		-20℃～60℃
Use Elevation		Below 1000 meters
Weight		1-2KG

Market Range of Hetai

Integrated Stepper Motor With Driver Open Loop Or Closed Loop Control

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas

Europe:France,Germany, Italy, Spain, Norway etc.

North America: USA,Canada

Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox&Gearbox Motor, Brushless DC Motor, Servo Motor.

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Stator Winding Machine

Integrated Stepper Motor With Driver Open Loop Or Closed Loop Control

Hetai introduced a large number of professional equipment, which greatly improved the production efficiency.

Noise test room

Integrated Stepper Motor With Driver Open Loop Or Closed Loop Control

CNC Center

Packing&Delivery

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 16

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 17

Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.

Automatic assembly line

Integrated Stepper Motor With Driver Open Loop Or Closed Loop Control

Products Annual Capacity

Hybrid stepper motor 3 million units

Brushless DC motor 2 million units

Servo motor 0.05 million units

Gear 0.2 million units

Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.
