57BYGN square flange space-saving 1.8-degree CE ROHS ISO customizable micro stepping motor

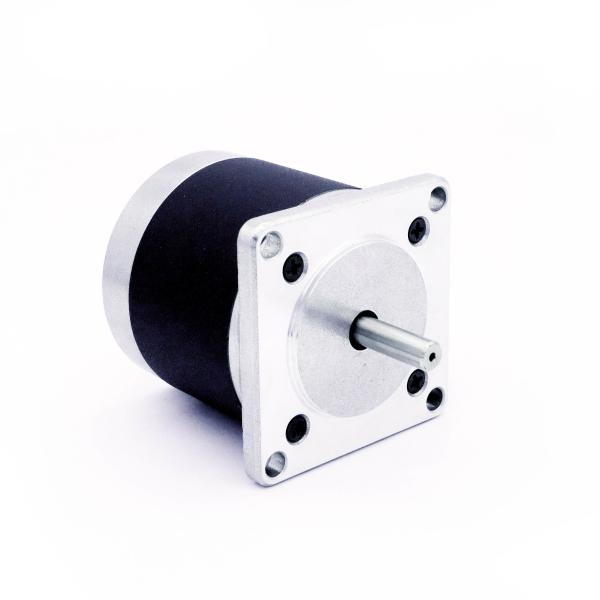

57BYGN is a NEMA 23 motor with a cylindrical body and square flange. The motor length is from 20-25mm, with a wide range of torque from 3 kg.cm to 9 kg.cm. The dielectric strength is 500VAC 1 minute and the insulation resistance is 100MΩ Min.500VC DC.

*Products can be customized by special request.

Wiring Diagram

Mechanical Dimension

Applications of Stepper Motors

-3D printing equipment.

-Textile machines.

-Printing presses.

-Gaming machines.

-Medical imaging machinery.

-Small robotics.

-CNC milling machines.

-Welding equipment.
