    DC 5V Micro Stepper Motor 57mm Nema 23 1a 1.8 0.58 Nm 516 Oz In

    Ask Lasest Price
    Brand Name : HeTai
    Model Number : 57BYGN200A
    Certification : CE ROHS ISO
    Price : USD
    Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 PCS/MONTH
    Delivery Time : 25 DAYS
    • Product Details
    • Company Profile

    DC 5V Micro Stepper Motor 57mm Nema 23 1a 1.8 0.58 Nm 516 Oz In

    57BYGN200A NEMA 23 1.8 Degree 0.58 Nm micro DC 5V Stepper Motor with aluminum pulley


    Pulley Specification

    Material: Aluminum
    Number of teeth: 50
    Tooth Type: MXL
    Pitch: 2.032
    Outer diameter:φ31.83


    Electrical Specification


    Model Number
    57BYGN200A
    Step Accuracy
    ± 5%
    Step Angle
    1.8°
    Lead Wire
    4
    Voltage (V)
    5
    Current (A/Phase)
    1
    Holding Torque (N.m)
    0.58
    Resistance (Ω/phase)5
    Inductance (mH/phase)11.5
    Motor length (MM)51
    Motor Weight(Kg)0.6
    Insulation ClassB

    *Products can be customized by special request.


    Wiring Diagram

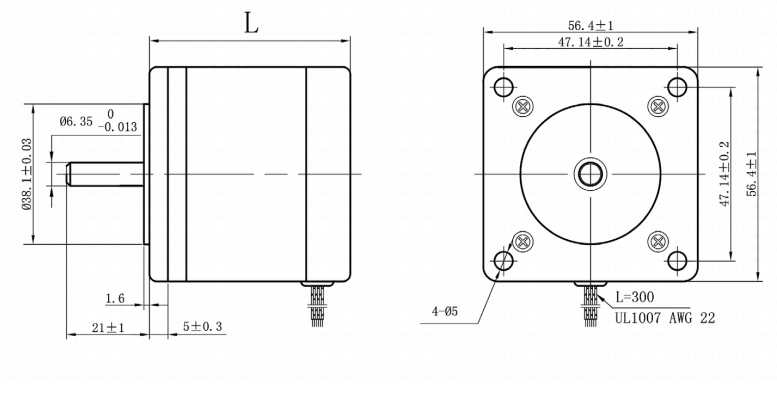

    Mechanical Dimension
    Specification of Other Models
    MODELSTEP ANGLE
    (°/STEP)
    LEAD WIRE
    (NO.)
    VOLTAGE
    (V)
    CURRENT
    (A/PHASE)
    RESISTANCE
    (Ω/PHASE)
    INDUCTANCE
    (MH/PHASE)
    HOLDING TORQUE
    (KG.CM)
    MOTOR HEIGHT
    L(MM)
    MOTOR WEIGHT
    (KG)
    57BYGN0011.86120.3832253.0410.45
    57BYGN0271.842.81.42.13.53.9410.45
    57BYGN200-19A1.8651.05.011.55.8510.65
    57BYGN2041.8611.20.428303.8510.65
    57BYGN400-11A1.845.51.15.0127.8560.70
    57BYGN4121.844.42.02.26.39.0560.70

    *Products can be customized by special request.

    *Can match with gearbox 42, 52, 56 mm


    Based on all these advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors, and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.


    Advantages:

    1. The rotation angle of the motor is proportional to the input pulse.

    2. The motor has full torque at standstill(if the windings are energized)

    3. Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3 – 5% of a step and this error is noncumulative from one step to the next.

    4. Excellent response to starting/stopping/reversing.

    5. Very reliable since there are no contact brushes in the motor. Therefore the life of the motor is simply dependant on the life of the bearing.

    6. The motors response to digital input pulses provides open-loop control, making the motor simpler and less

    costly to control.

    7. It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.

    8. A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input

    pulses.
