12v Micro Planetary Stepper Motor With Gearbox Gear Reduction 3.8 Kg Cm

Ask Lasest Price
Brand Name :	HeTai
Model Number :	42BYGH603-08AG16
Certification :	CE ROHS ISO
Price :	USD
Payment Terms :	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000 PCS/MONTH
Delivery Time :	25 DAYS

Add to Cart

Product Details
Company Profile

12v Micro Planetary Stepper Motor With Gearbox Gear Reduction 3.8 Kg Cm

42BYGH603-08AG16 micro stepping planetary gear motor high-efficiency speed reducer

Model	Size	Weight(g)	Gearbox Diameter	Motor Weight(g)	Voltage(V)	Motor length(mm)
42BYGH603-07AG5	424264.5 mm	385	36mm	385	12	64.5
42BYGH603-08AG16	424272.1 mm	413	36mm	413	12	72.1
42BYGH603-10AG54	424299.8 mm	507	42mm	507	12	99.8
42BYGH603-09AG117	424281.6 mm	453	36mm	453	12	81.6

Electrical Specification

STEP ANGLE	°/STEP	1.8
RATED VOLTAGE	V	12
CURRENT	A/PHASE	0.4
RESISTANCE	Ω/PHASE	30
INDUCTANCE	mH/PHASE	65
HOLDING TORQUE	Kg.cm	3.8
INSULATION CLASS		B

*Products can be customized by special request.

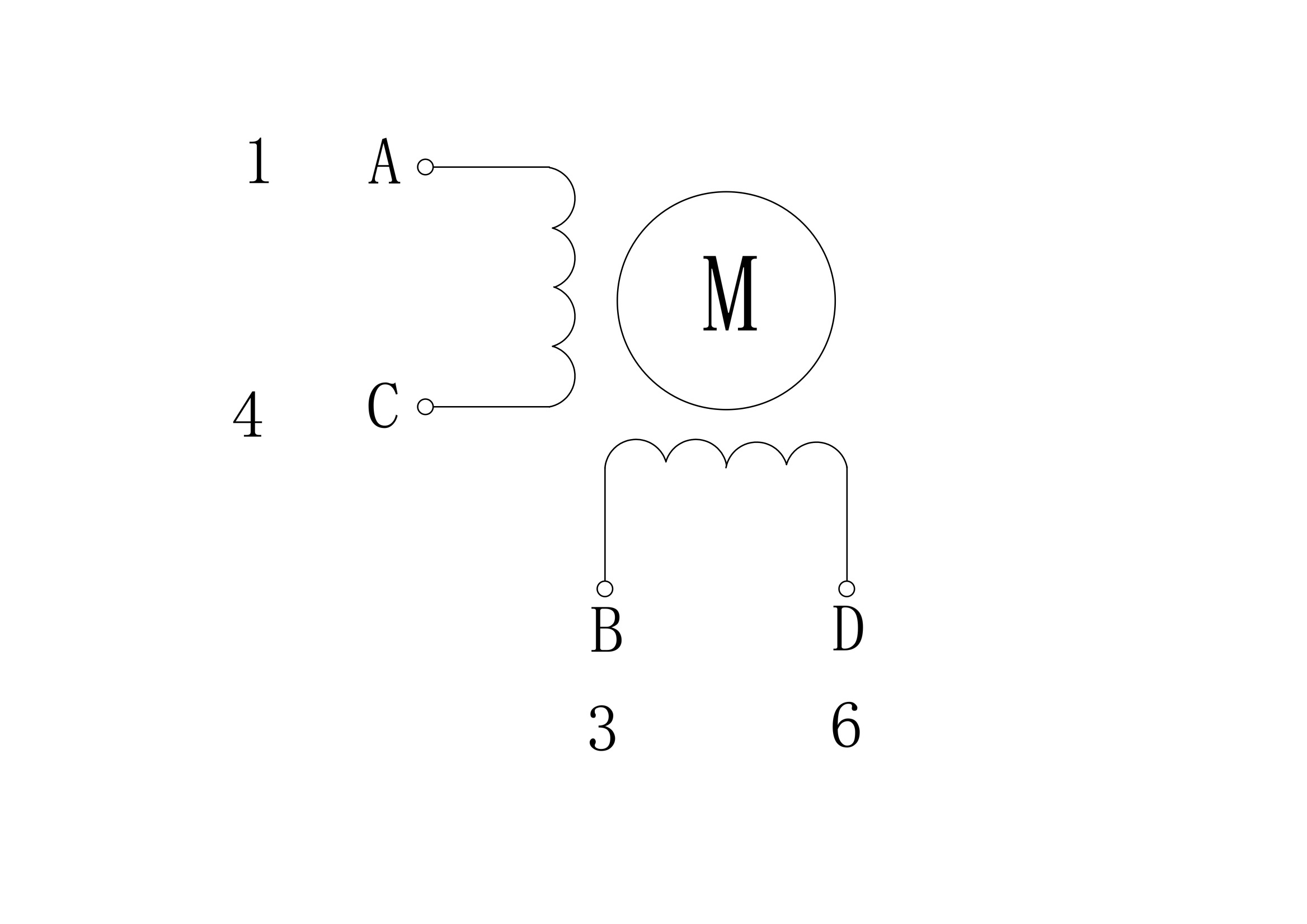

Wiring Diagram

Mechanical Dimension

GEARBOX Electrical Specification:

Out diameter 36mm Powder metallurgy

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Powder metallurgy	sleeve bearing	≤120	≤80	≤500	≤0.03	≤0.1	≤1.5

Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length (mm)	Weight(g)	Number of gear trains
1/4	0.3	1.0	81%	24.8	145	1
1/5
1/16	1.2	3.5	72%	32.4	173	2
1/20
1/25
1/53	2.5	7.5	65%	41.9	213	3
1/62
1/76
1/94
1/117

Mechanical Dimension

Selecting a Planetary Gearbox
When selecting a planetary gearbox for your application it is important to take note of;

Specifications required – torque, backlash, ratio etc of the application must be taken into considerations.

Environment – some environments may leave a gearbox exposed to dust, dirt or moisture so it is important to consider this factor and select a gearbox with the correct protection.

Space – planetary gearboxes are available in various sizes, if there is limited space available then a smaller gearbox can be used.

Applications include

Wheel drives
Track drives
Conveyors
Slew drives
Hoist drives
Mixing
Winch drives
Pumps
Coil tubing injectors
Auger & drilling drives
Cutter head drives
