Cylindrical Gearbox Stepper Motor 8 Nm 4 nm 12v Gear Reducer Ratio 1 54

Ask Lasest Price
Brand Name :	HeTai
Model Number :	42BYGH208-59AG54
Certification :	CE ROHS ISO
Price :	USD
Payment Terms :	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000 PCS/MONTH
Delivery Time :	25 DAYS

Add to Cart

Product Details
Company Profile

Cylindrical Gearbox Stepper Motor 8 Nm 4 nm 12v Gear Reducer Ratio 1 54

42BYGH208-59AG54 stepping gear motor 12v with low noise cylindrical gear reducer ratio 1:54

Model	Size	Weight(g)	Current/phase	Gearbox diameter	Reduction Ratio	Step Angle	Holding torque with gearbox (Nm)
42BYGH208-59AG54	424293.8 mm	467	0.4	42mm	1:54	1.8	8.78
42BYGH208-58AG117	424275.6 mm	413	0.4	36mm	1:117	1.8	19.01
42BYGH603-07AG5	424264.5 mm	385	0.4	36mm	1:5	1.8	1.54
42BYGH603-08AG16	424272.1 mm	413	0.4	36mm	1:16	1.8	4.38

Electrical Specification

STEP ANGLE	°/STEP	1.8
RATED VOLTAGE	V	12
CURRENT	A/PHASE	0.4
RESISTANCE	Ω/PHASE	30
INDUCTANCE	mH/PHASE	42
HOLDING TORQUE	Kg.cm	2.5
INSULATION CLASS		B

*Products can be customized by special request.

Wiring Diagram

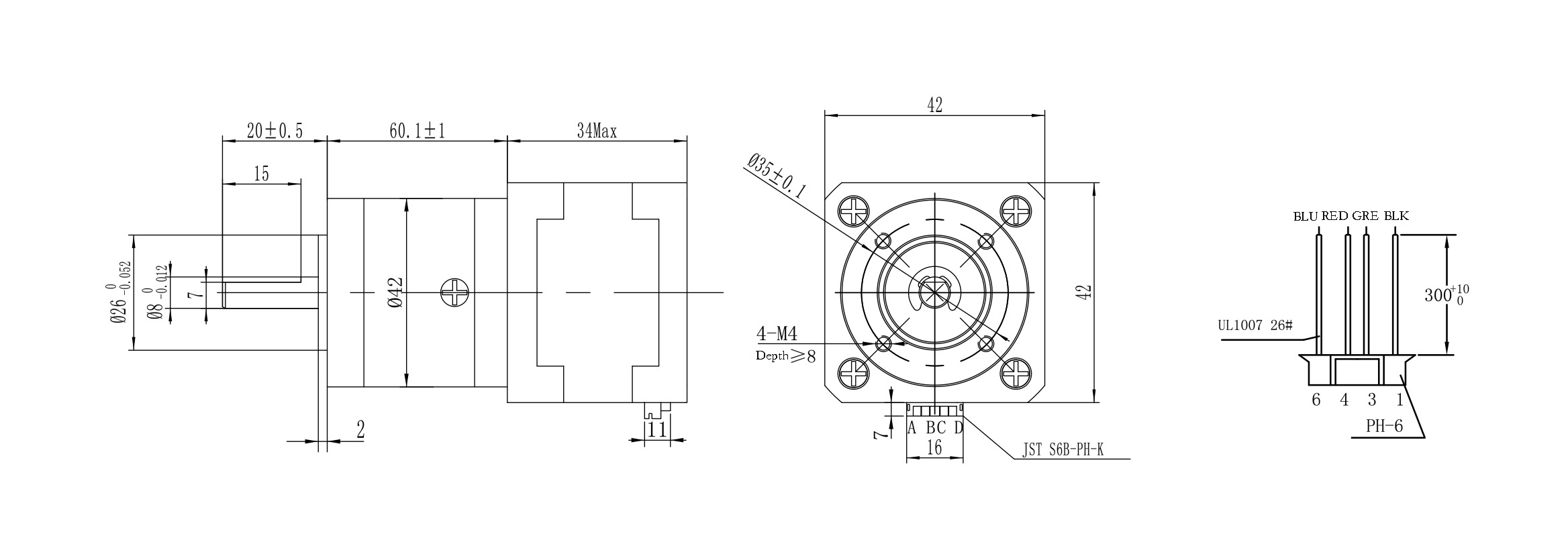

Mechanical Dimension

Based on all these advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors, and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

GEARBOX Electrical Specification:

Out diameter 42mm Powder metallurgy

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Powder metallurgy	sleeve bearing	≤120	≤80	≤500	≤0.03	≤0.1	≤1.5

Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length (mm)	Weight(g)	Number of gear trains
1/4	1.0	3.0	81%	32.5	170	1
1/6
1/15	4.0	12	72%	46.3	207	2
1/18
1/25
1/36
1/54	8.0	25	65%	60.1	267	3
1/65
1/90
1/112
1/155
1/216	10	30	65%	60.1	267

Wide Speed Ratio with a Long Service Lifespan

For the same amount of load capacity, a planetary gearbox has a higher service lifespan than the traditional gearboxes. Therefore, these gearboxes are easy to handle and install. These are key aspects that can improve efficiency and reliability in any mechanical system.

Again, the arrangement of gears is such that the entire system remains stable and reliable.
