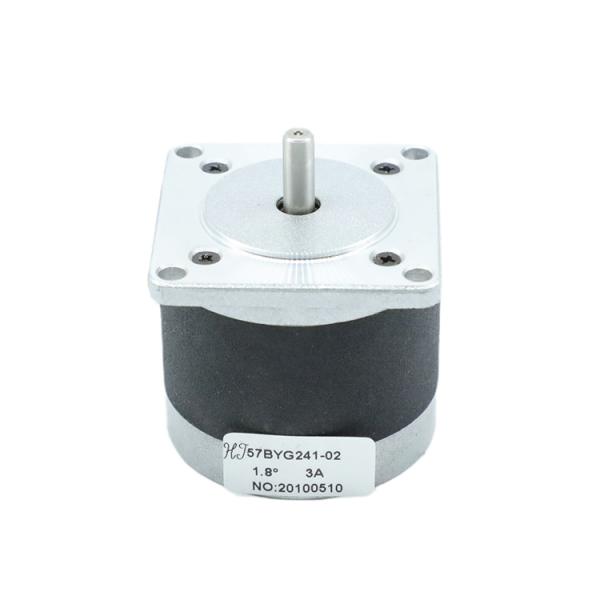

Professional Manufacture 57BYG241-02 Hybrid Electric 1.8 degree Nema 23 Stepper Motor

Product Name-------------------------------Hybrid stepper motor

Torque --------------------------------------- 0.51 Nm

Step angle-----------------------------------1.8 degree

Step Accuracy ------------------------------ ±5%

Resistance Accuracy ----------------------- ±10%

Inductance Accuracy ---------------------- ±20%

Temperature Rise -------------------------- 80°C MAX.

Environment Temperature Range ------- -20°C~ +50°C

Storage Temperature Range ------------- -30°C~ +60°C

Insulation Resistance ---------------------- 100M Ω MIN. 500V DC

Dielectric Strength ------------------------- 500V AC 1min

Max. radial force --------------------------- 75N

Max. axial force ---------------------------- 15N

Electrical Specification:

*Products can be customized by special request.

Wiring Diagram

Mechanical Dimension

Specification of Other Models:

MODEL	STEP ANGLE (°/STEP)	LEAD WIRE (NO.)	VOLTAGE (V)	CURRENT (A/PHASE)	RESISTANCE (Ω/PHASE)	INDUCTANCE (MH/PHASE)	HOLDING TORQUE (KG.CM)	MOTOR HEIGHT L(MM)	MOTOR WEIGHT (KG)
57BYGN001	1.8	6	12	0.38	32	25	3.0	41	0.45
57BYGN027	1.8	4	2.8	1.4	2.1	3.5	3.9	41	0.45
57BYGN200-19A	1.8	6	5	1.0	5.0	11.5	5.8	51	0.65
57BYGN204	1.8	6	11.2	0.4	28	30	3.8	51	0.65
57BYGN400-11A	1.8	4	5.5	1.1	5.0	12	7.8	56	0.70
57BYGN412	1.8	4	4.4	2.0	2.2	6.3	9.0	56	0.70

*Products can be customized by special request.

*Can match with gearbox 42, 52, 56

Applications of Stepper Motors

-3D printing equipment.

-Textile machines.

-Printing presses.

-Gaming machines.

-Medical imaging machinery.

-Small robotics.

-CNC milling machines.

-Welding equipment.
