57BYGH350B-002 0.6 Degree 3-phase 0.7 NM 2mH micro DC Nema 23 stepper motor

57BYGH350 series is a type of 3 phase stepper motor, the step angle can be made as 0.6°or 1.2°. The lead wire number is 6. It has a high torque output of 0.7 Nm. To compare with 2 phase 1.8 degree stepper motor, 3 phase motor is more stable & smooth in performance and operation. In addition, the three phase stepper motor need a special driver made especially for 3 phase.

*Products can be customized by special request.

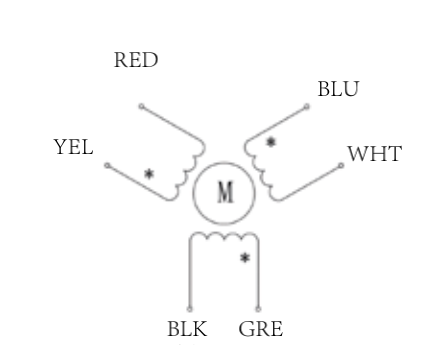

Wiring Diagram

Mechanical Dimension

MODEL	STEP ANGLE (°/STEP)	LEAD WIRE (NO.)	VOLTAGE (V)	CURRENT (A/PHASE)	RESISTANCE (Ω/PHASE)	INDUCTANCE (MH/PHASE)	HOLDING TORQUE (KG.CM)	MOTOR HEIGHT L(MM)	MOTOR WEIGHT (KG)
57BYGH350A-001	1.2	6	3.12	2.4	3.4	4.0	4.0	41	0.45
57BYGH350A-002	1.2	3	5.0	0.5	10	16	2.0	41	0.45
57BYGH350B-001	1.2	3	2.52	5.6	0.45	1.1	9.0	56	0.69
57BYGH350B-002	1.2	6	5.28	2.4	2.2	2	7.0	56	0.75
57BYGH350C-001-09	1.2	3	2.6	5.2	0.5	1.4	12	76	1.05
57BYGH350C-005-01	1.2	3	9.0	1.0	9.0	21	9	76	1.10

*Products can be customized by special request.

*Can match with gearbox 42, 52, 56
