HTD542 Max 50V output 4.2A 2 phase digital stepper motor driver

The 2015-style HTD542 two-phase digital stepper motor driver recently launched by Hetai Electrical Appliance Co., Ltd. features excellent performance, which is used to adapt to the three-phase 57 and 86 stepper motors so as to make the motors have excellent properties of high speed and large torque output, low speed, low vibration, low noise, low heat radiation, etc. Therefore, it is a product with the most excellent performance in the same industry at present.

Basic frequency: 80MHZ

Brand new ARM core M4 technology 32-bit processor

Maximum motor no-load running speed: 4000RPM

Maximum output current: 4.2A

Maximum input voltage: 50VDC

Maximum input pulse frequency: more than 2MHZ

Maximum number of subdivisions: 25000

Electrical Indicators

Environmental indicators

Mechanical Dimension

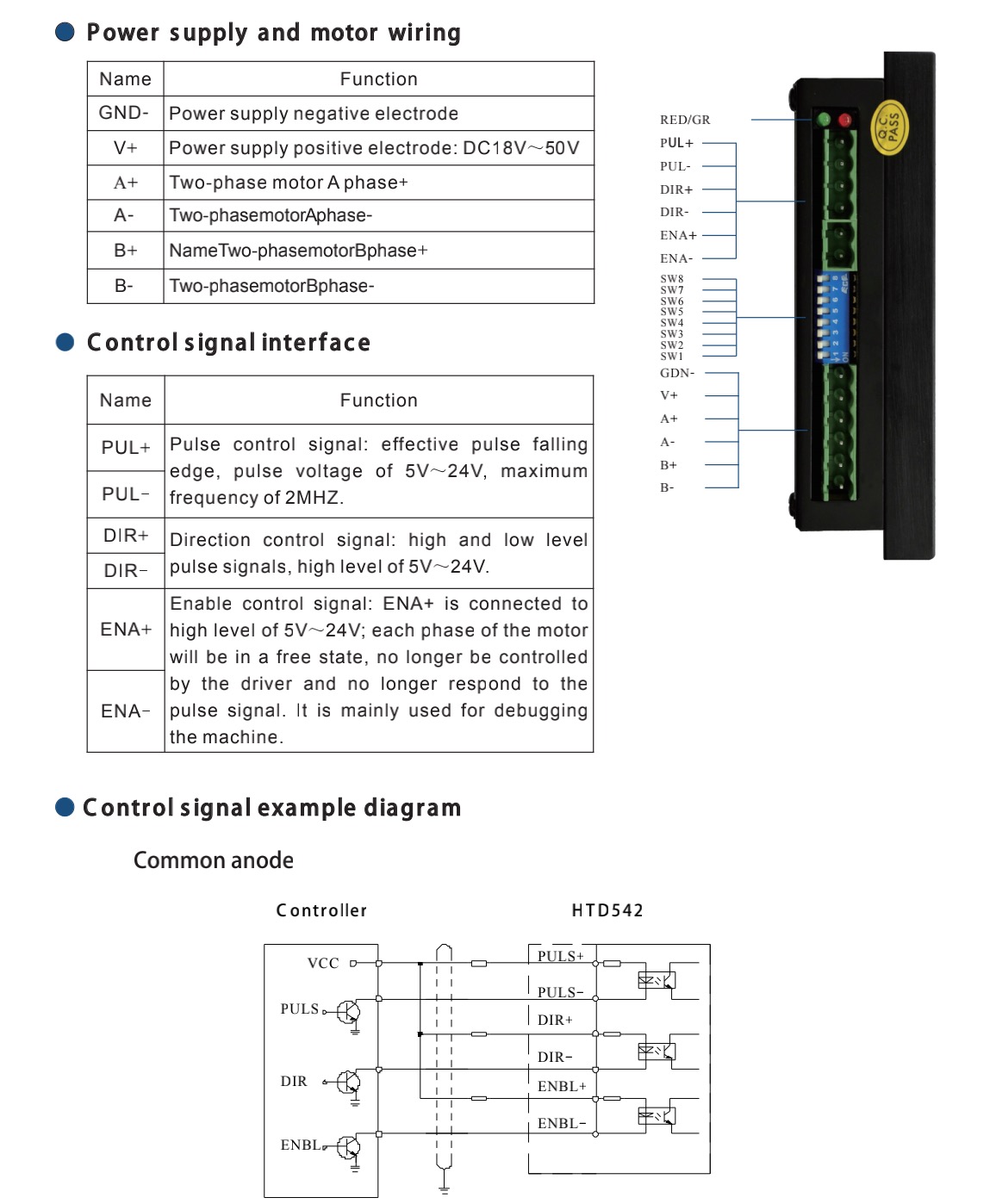

Interface& Wiring Diagram

The stepper motor is widely used in CNC machine tools, medical equipment, engraving machines, 3D printer, electronic processing equipment, automated production lines, and other automated equipment.

Changzhou Hetai Motors

Hetai is located in Changzhou, Jiangsu province. Our workshop area is over 15,000㎡. Since Hetai was founded in 1999, the specialization and scale of production have ensured to manufacture of five million motors every year.

Factory Scale Of Hetai

Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.

Changzhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to providing professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as an assembly line, Automatic cylindrical grinder, and CNC machining centers as well.

Products Range Of Hetai

Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Changzhou Hetai Electric Appliance Co., Ltd. is a micro-motor manufacturing enterprise with strong technical strength. Specializing in the production of various stepper motors, stepper motor drivers, brushless DC motors, etc., with an annual output of 3 million units! Products are mainly used in printers, ticket printing machines, engraving machines, medical instruments, stage lighting, the textile industry, and other industries of automation equipment and instruments.

Market Range of Hetai

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

Certificate Of Hetai

When it comes to the quality aspect, Hetai was qualified by ISO Certificate, CE, Reach and  Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and development strength. With the support of a professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Awards as well as other awards during the years.

Overall, Hetai always puts customer needs a first place. Not only supplying a quality products, we believe to help customers make better product is the most important mission.
