ES60 400W High output power High accuracy 1.27 Nm torque IP65 DC Servo Motor

The ES60-400W series servo motor should apply with 310V voltage, and it has a high protection level of IP 65. IP 65 means it can completely prevent dust from entering and low-pressure injection at any angle have no effect. Hetai's servo motor has high precision and can add brake and encoder depend on customers' needs. The current of the 400W servo motor is 2.65A and the rated torque is 1.27 Nm.

Electrical Specification

Note: The products can be customized by your request. Please contact us for more details.

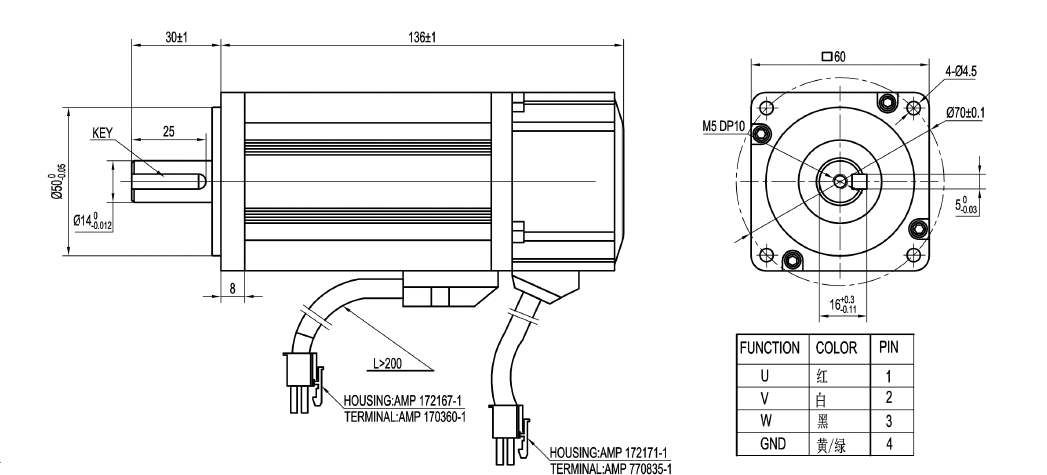

Wiring diagram

Note: A, B, L, N refers to the different encoder.

A= tamagawa single-turn absolute value 17-bit encoder

B=incremental 2500ppr optical encoder

L=tamagawa multi-turn absolute value 17-bit encoder

N=Nikon multi-turn absolute value 24 bit

Servo Motor consists of a DC Motor, a Gear system, a position sensor, and a control circuit. The DC motors get powered from a battery and run at high speed and low torque. The Gear and shaft assembly connected to the DC motors lower this speed into sufficient speed and higher torque. The position sensor senses the position of the shaft from its definite position and feeds the information to the control circuit. The control circuit accordingly decodes the signals from the position sensor and compares the actual position of the motors with the desired position and accordingly controls the direction of rotation of the DC motor to get the required position.

When it comes to quality aspects, Hetai was qualified by ISO Certificate, CE, and Rohs. The product quality has also been recognized by many customers.
Hetai is also proud of its research and development strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
