Brushless Dc Motor With Planetary Gearbox 24v 40w

Ask Lasest Price
Brand Name :	HeTai
Model Number :	57BL
Certification :	CE ROHS ISO
Price :	USD
Payment Terms :	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000 PCS/MONTH
Delivery Time :	25 DAYS

Add to Cart

Product Details
Company Profile

Brushless Dc Motor With Planetary Gearbox 24v 40w

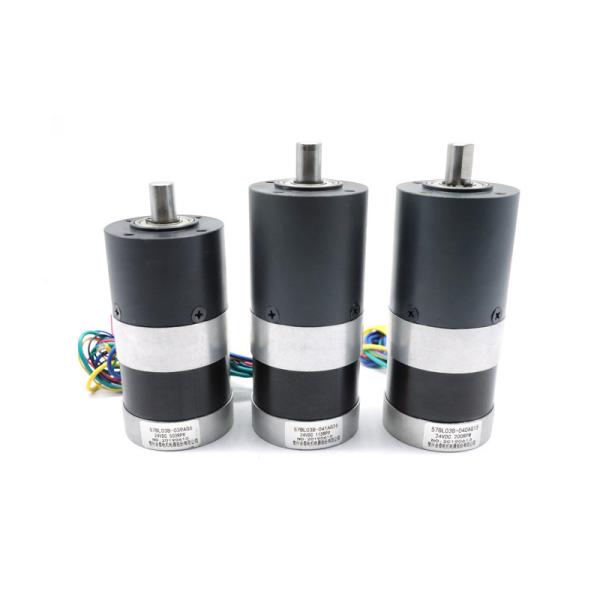

57BL CE ROHS ISO customization bldc motor max 10Nm brushless with low noise planetary gearbox

Model	Reduction Ratio	Gearbox diameter	Gearbox Housing Material	Voltage(V)	Power(W)	Speed(RPM)	Rated torque (Nm)
57BL03B-039AG6	6:1	56mm	Powder metallurgy	24	41	500	0.79
57BL03B-040AG15	15:1	56mm	Powder metallurgy	24	40	200	1.9
57BL03B-041AG26	26:1	56mm	Powder metallurgy	24	40	115	3.3

MOTOR PART Electrical Specification:

		Model	Model	Model	Model	Model	Model
Specification	Unit	57BL01G	57BL02A	57BL03B	57BL04A	57BL05A	57BL06
Number Of Phases	Phase	3	3	3	3	3	3
Number Of Poles	Poles	4	4	4	4	4	4
Rated Voltage	VDC	24	24	24	24	24	24
Rated Speed	Rpm	2500	3000	3000	3000	3000	3000
Rated Current	A	0.77	1.87	3.17	3.67	5.33	7.00
Rated Torque	N.m	0.057	0.11	0.18	0.22	0.33	0.44
Rated Power	W	15	34.5	56	69	104	138
Peak Torque	N.m	0.17	0.33	0.54	0.66	0.99	1.32
Peak Current	Amps	2.3	5.6	9.5	11	16	21
Torque Constant	N.m/A	0.074	0.059	0.057	0.060	0.062	0.063
Back EMF constant	V/kRPM	7.75	6.2	5.9	6.3	6.5	6.6
Body Length	mm	41.5	46.5	56.5	66.5	86.5	106.5
Weight	Kg	0.35	0.44	0.56	0.67	0.95	1.18

*Products can match gearbox 42, 52, 56, 63mm

*Products can be customized by special request.

Wiring Diagram

FUNCTION	COLOR
+5V	RED	UL1007 26AWG
HALL A	YELLOW
HALL B	GREEN
HALL C	BLUE
GND	BLACK
PHASE A	YELLOW	UL1015 20AWG
PHASE B	GREEN
PHASE C	BLUE

Mechanical Dimension

GEARBOX PART Electrical Specification

Out diameter 42mm Powder metallurgy

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Powder metallurgy	sleeve bearing	≤120	≤80	≤500	≤0.03	≤0.1	≤1.5

Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length L (mm)	Weight(g)	Number of gear trains
1/4	1.0	3.0	81%	32.5	170	1
1/6
1/15	4.0	12	72%	46.3	207	2
1/18
1/25
1/36
1/54	8.0	25	65%	60.1	267	3
1/65
1/90
1/112
1/155
1/216	10	30	65%	60.1	267

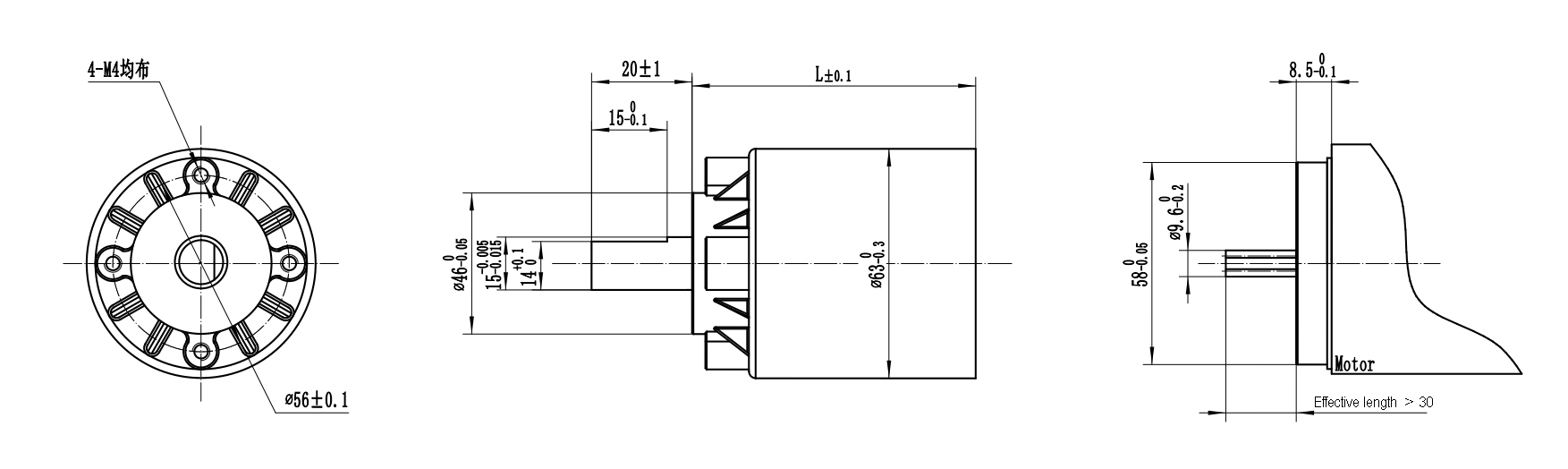

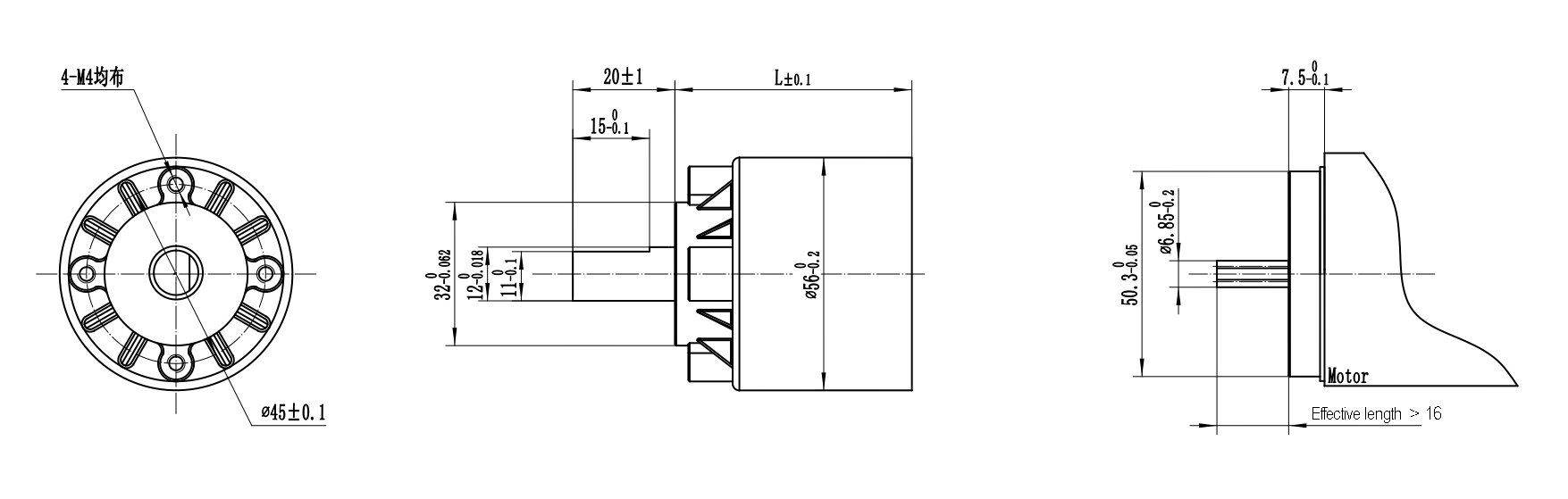

Mechanical Dimension

Out diameter 52mm Zinc alloy

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Zinc alloy	sleeve bearings	≤450	≤200	≤1000	≤0.03	≤0.1	≤1.5

Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length (mm)	Weight(g)	Number of gear trains
1/13	2.0	6.0	81%	52.9	345	1

Mechanical Dimension

Out diameter 56mm Powder metallurgy

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Powder metallurgy	sleeve bearings	≤450	≤200	≤1000	≤0.03	≤0.1	≤1.5

Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length L (mm)	Weight(g)	Number of gear trains
1/4	2.0	6.0	81%	41.3	491	1
1/6
1/15	8.0	25	72%	59.6	700	2
1/18
1/26
1/47	16	50	72%	59.6	700	2
1/66

Mechanical Dimension

Out diameter 56mm Engineering plastics

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Engineering plastics	sleeve bearing	≤450	≤200	≤1000	≤0.03	≤0.1	≤1.5

Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length L (mm)	Weight(g)	Number of gear trains
1/15	8.0	25	72%	61.6	450	2
1/18
1/26
1/47	16	50
1/66

Mechanical Dimension

Out diameter 56 mm Zinc alloy

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Zinc alloy	sleeve bearings	≤450	≤200	≤1000	≤0.03	≤0.1	≤1.5

Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length L (mm)	Weight(g)	Number of gear trains
1/4	2.0	6	81%	43.3	350	1
1/6
1/13				52.7	400

Mechanical Dimension

Out diameter 63mm Zinc alloy

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Zinc alloy	sleeve bearings	≤450	≤200	≤1000	≤0.03	≤0.1	≤1.5

Reduction ratio

Rated tolerance torque (Nm)

Max momentary tolerance torque (Nm)

Efficiency%

Length

L(mm)

Weight(g)

Number of gear trains

1/8

3.0

8.0

81%

75.5

400

Mechanical Dimension

By having a different arrangement of sun gear and planetary gears, high output torque and wide speed ratio are achieved. Apart from these, planetary gearboxes have lower inertia and high torque transmission.All these are key aspects that guarantee efficiency.

The ability to accurately vary the degree of power and speed makes planetary gearboxes suitable for many special applications such as wind turbine, internal combustion engines, and so on.
