42BYGHM201-02 0.4A Nema17 Customizable Low Noise Hybrid Dc Stepper
Motor
The stepper motor working principle is Electro-Magnetism. It
includes a rotor which is made with a permanent magnet whereas a
stator is with electromagnets. Once the supply is provided to the
winding of the stator then the magnetic field will be developed
within the stator. Now rotor in the motor will start to move with
the rotating magnetic field of the stator. So this is the
fundamental working principle of this motor
Electrical Specification:
Model Number | 42BYGHM201-02 |
Step Accuracy | ± 5% |
Step Angle | 0.9° |
Lead Wire | 4 |
Voltage (V) | 5 |
Current (A/Phase) | 0.4 |
Holding Torque (N.m) | 0.16 |
Resistance (Ω/phase) | 30 |
Inductance (mH/phase) | 0.4 |
Motor length (MM) | 34 |
Motr Weight(K/g) | 0.2 |
Insulation Class | B |
*Products can be customized by special request.
*Wiring Diagram
*Mechanical Dimension
Specification of Other Models:
| MODEL | STEP ANGLE
(°/STEP) | LEAD WIRE
(NO.) | VOLTAGE
(V) | CURRENT
(A/PHASE) | RESISTANCE
(Ω/PHASE) | INDUCTANCE
(MH/PHASE) | HOLDING TORQUE
(G.CM) | MOTOR HEIGHT
L(MM) | MOTOR WEIGHT
(KG) |
|---|
| 42BYGHM203 | 0.9 | 4 | 10 | 0.5 | 20 | 40 | 2100 | 34 | 0.20 |
| 42BYGHM213-07A | 0.9 | 4 | 8 | 1 | 8.0 | 13 | 2200 | 34 | 0.20 |
| 42BYGHM607-16 | 0.9 | 4 | 2.6 | 1.7 | 1.5 | 3.2 | 3200 | 40 | 0.24 |
| 42BYGHM619-08 | 0.9 | 4 | 11.2 | 0.4 | 28 | 60 | 2800 | 40 | 0.24 |
| 42BYGHM805 | 0.9 | 4 | 3.5 | 1 | 3.5 | 7.6 | 3700 | 48 | 0.34 |
| 42BYGHM810 | 0.9 | 4 | 2.4 | 2.4 | 1.0 | 1.8 | 4800 | 48 | 0.34 |
*Products can be customized by special request.
*Produdts can match gearbox 36.42

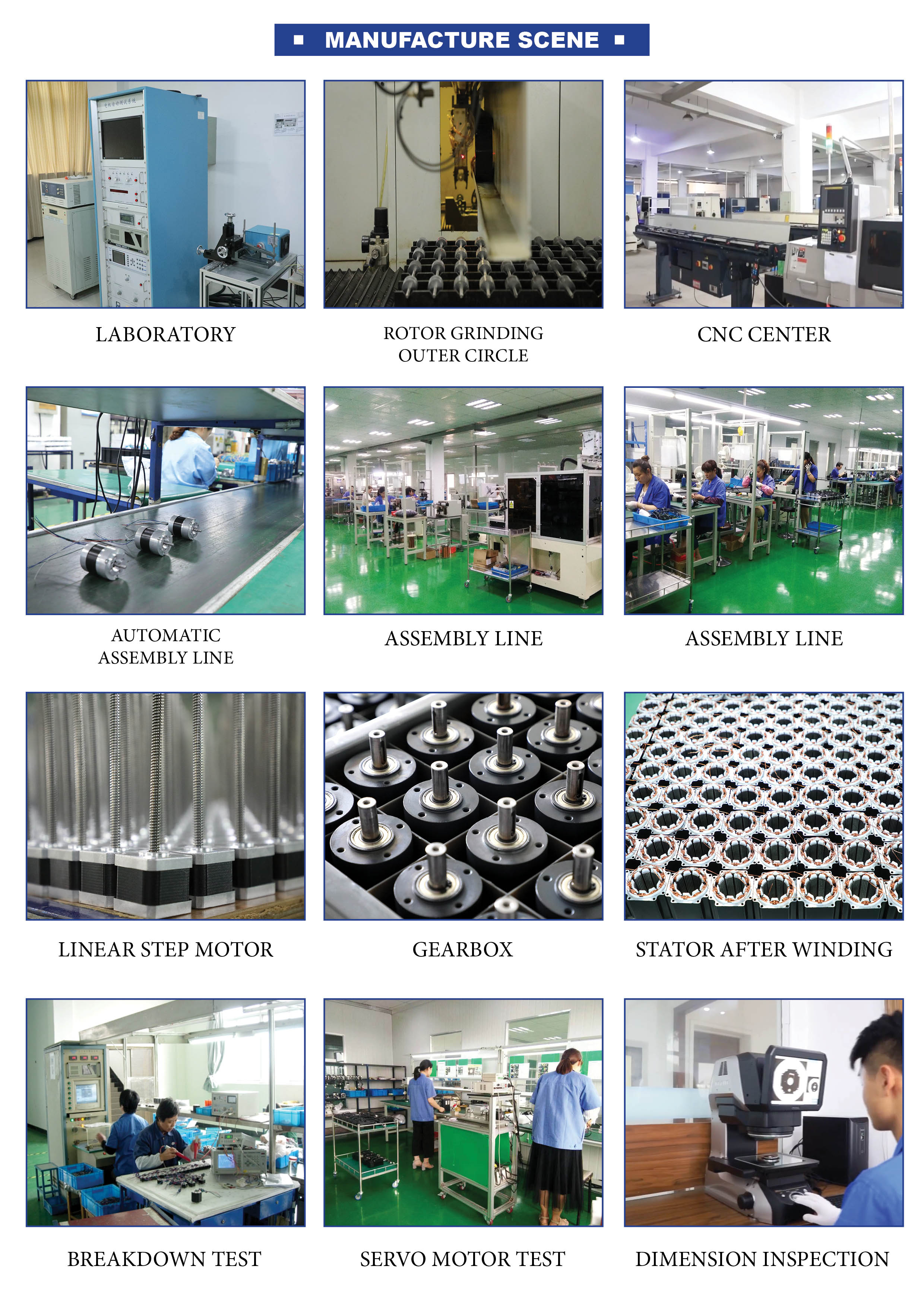

Based on all this advantages, our company specializes in producing
hybrid stepping motors, DC brushless motors, servo motors, gearbox
motors and so on. The products are applied in robots, packing
machinery, textile machinery, medical instruments, printing
machinery, intelligent logistics equipment... Hetai also sends its
products to USA, Europe, Southeast Asia and all-around China.
FAQ
1. Are you a factory?
Yes, we are a factory. Our brand name Hetai is a well-known micro
motor manufacturer for more than 20 years in
China. Main products including hybrid stepper motor, brushless DC
motor, servo motor, and planetary gearbox.
2. Can I test the sample?
Yes, samples and freight are charged.
3. Can I get a Customized product?
Sure, all the products can be customized based on special requests.
4. How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by
air, also accept freight forwarder.
5. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance
order accept
6. Is this your final price? May I have the discount?
Our price is the factory price. If you have a large quantity, we
can negotiate about the discount.
7. What is the Warranty for your products?
Our warranty is for one year. If any quality problems occurred on
our side during this period, we will take on the shipping cost and
replacement. please note damage caused by improper use of the
product is not covered by the warranty.
