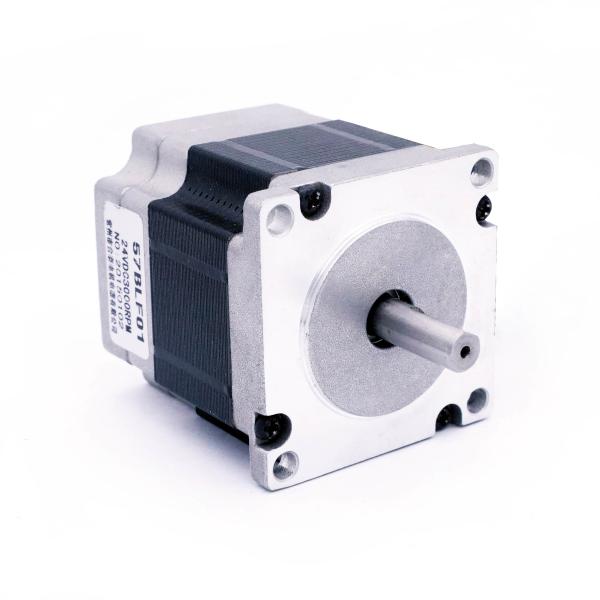

57BLF nema 34 high torque IP40 motor brushless DC 250W for robotic arms

57BLF01 3 phase 8 poles Voltage 24V, Rated current 3.33A, Rated torque 0.2 Nm

57BLF02 3 phase 8 poles Voltage 24V, Rated current 6.67A, Rated torque 0.4 Nm

57BLF03 3 phase 8 poles Voltage 24V, Rated current 10A, Rated torque 0.6 Nm

57BLF04-001 3 phase 8 poles Voltage 36V, Rated current 8.87A, Rated torque 0.8 Nm

Wiring Diagram

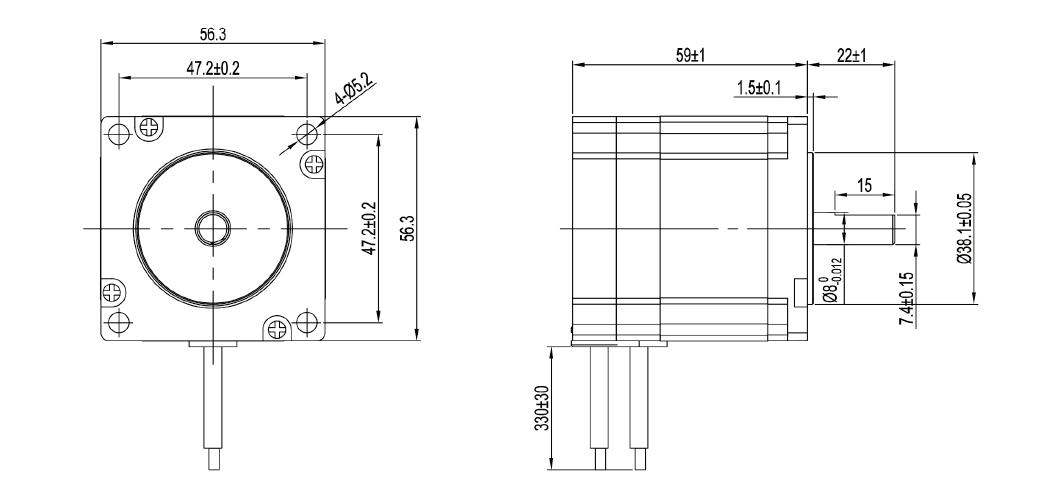

Mechanical Dimension
