Small Gearbox Brushless Motor NEMA 14 24v 36mm 2 Nm

Ask Lasest Price
Brand Name :	Hetai
Model Number :	36BLY01E-001AG94
Certification :	CE ROHS ISO
Price :	USD
Payment Terms :	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000pcs/month
Delivery Time :	28-31

Add to Cart

Product Details

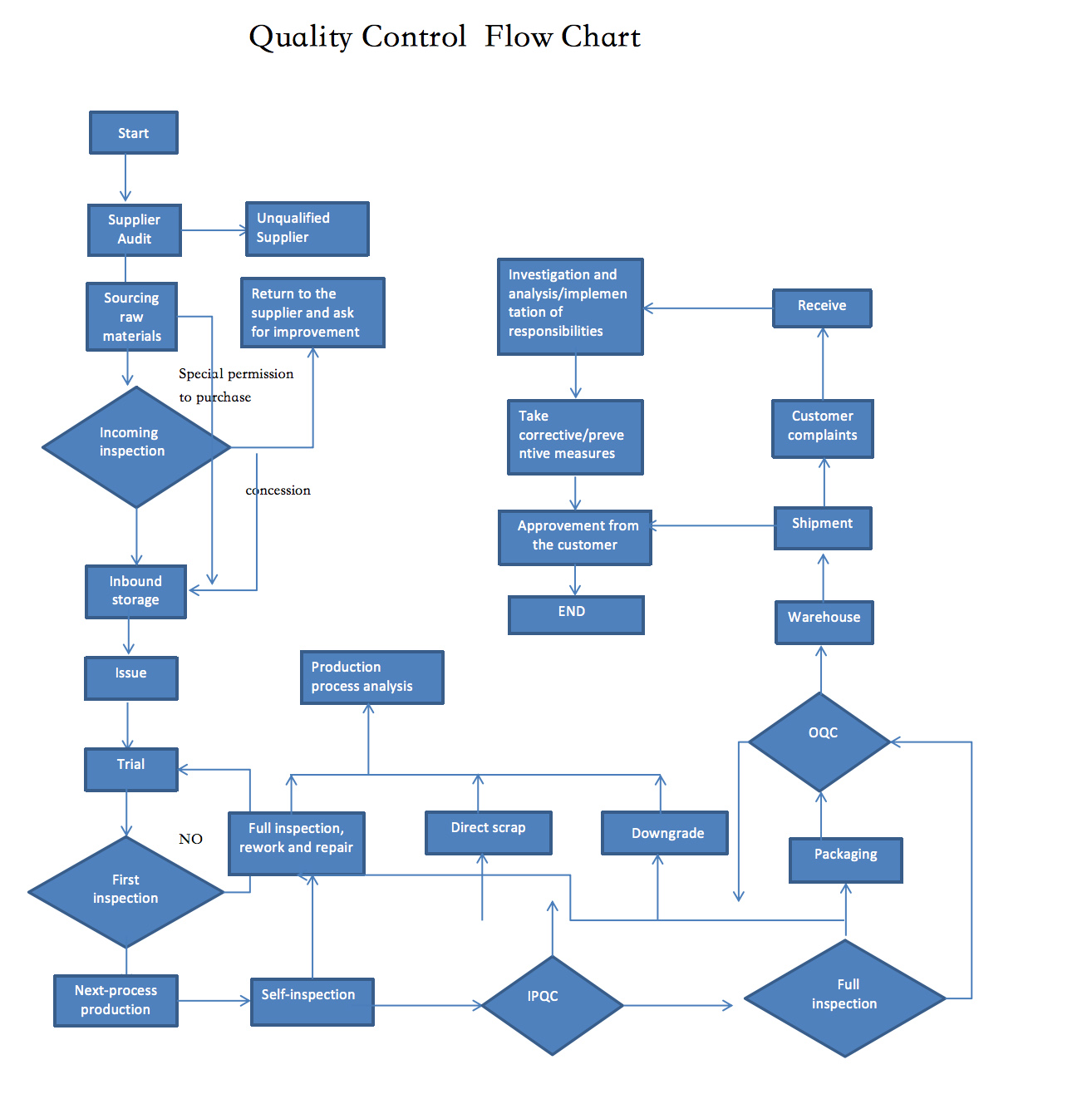

Company Profile

Small Gearbox Brushless Motor NEMA 14 24v 36mm 2 Nm

36BLY01E-001AG94 NEMA 14 planetary gearbox motor small size 2 N.m high efficiency

36BLY01E-001AG94 is using a powder metallurgy gearbox. The rated torque of motor 36BLY01E is 0.03NM, installed with the reduction ratio 1:94 gearbox, the torque can reach to 2 NM. Meanwhile the speed of 3500 rpm is reduced to 38 rpm. It can also match with other reduction ratio:

Stage 1

1/4, 1/5

Stage 2

1/16, 1/20, 1/25

Stage 3

1/53, 1/62, 1/76, 1/94, 1/117

Please scroll down to see more details about the gearbox

Electrical Specification:

		Model
Manufacture Model		36BLY01E-001AG94
Number Of Phases	Phase	3
Number Of Poles	Poles	４
Line To Line Resistance	OHMS	6.4
Nominal Voltage	VDC	24
No Load Speed	RPM	4800
No Load Current	Amps	0.32
Rated Speed	Rpm	3500±200
Rated Current	A	0.32
Rated Torque	N.m	0.03
Rated Power	W	11
Peak Torque	N.m	0.09
Torque Constant	N.m/A	0.015
Back EMF constant	V/kRPM	1.6
Body Length	mm	42
Weight	Kg	0.16
MOTOR SPECIFICATIONS WITH PLANETARY GEAR
Rated Torque	N.m	2
Rated Speed	Rpm	38
RATIO		94:1

*Products can be customized by special request.

Wiring Diagram

FUNCTION	COLOR
+5V	RED	UL1332 26AWG
HALL A	BLUE
HALL B	GREEN
HALL C	WHITE
GND	BLACK
PHASE A	BROWN
PHASE B	YELLOW
PHASE C	ORANGE

Mechanical Dimension

GEARBOX PART Electrical Specification:

36mm Powder metallurgy

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Powder metallurgy	sleeve bearings	≤120	≤80	≤500	≤0.03	≤0.1	≤1.5

Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length (mm)	Weight(g)	Number of gear trains
1/4	0.3	1.0	81%	24.8	145	1
1/5
1/16	1.2	3.5	72%	32.4	173	2
1/20
1/25
1/53	2.5	7.5	65%	41.9	213	3
1/62
1/76
1/94
1/117

How Does a Planetary Gearbox Work?

The alignment of the gears can be compared to our solar system where the planets revolve around the sun, hence the name “Planetary Gearbox”.

In the middle of the planetary gearbox, there is a “sun” gear –also known as a central gear. This is often the input gear. Around the outside, there are 2 or more “planet” gears – or outer gears. Surrounding the planet gears there is a ring gear that holds the formation together. The planet gears are connected by a carrier which in turn is connected to the output shaft.
