24v 18W Planetary Gearbox Brushless Motor Speed Reducer 3 Phase 36mm 0.04nm

Ask Lasest Price
Brand Name :	Hetai
Model Number :	42BLY01A-004AG25
Certification :	CE ROHS ISO
Price :	USD
Payment Terms :	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000pcs/month
Delivery Time :	28-31

Add to Cart

Product Details
Company Profile

24v 18W Planetary Gearbox Brushless Motor Speed Reducer 3 Phase 36mm 0.04nm

42BLY01A-004AG25 3 phase brushless motor with 36mm planetary gearbox speed reducer

Wide Speed Ratio with a Long Service Lifespan

42BLY01A-004AG25 is consists of a 3 phase 42mm dc brushless motor and a 36mm planetary gearbox. For the same amount of load capacity, our powder metallurgy planetary gearbox has a higher service lifespan than the traditional gearboxes. The key aspects are to improve efficiency and reliability in any mechanical system.

Electrical Specification

		Model
Manufacture Model		42BLY01A-004AG25
Number Of Phases	Phase	3
Number Of Poles	Poles	4
Line To Line Resistance	OHMS	5
Nominal Voltage	VDC	24
No Load Speed	RPM	4800
No Load Current	Amps	0.25
Rated Speed	Rpm	3500±200
Rated Torque	N.m	0.04
Peak Torque	N.m	0.12
Torque Constant	N.m/A	0.043
Back EMF constant	V/kRPM	4.4
Body Length	mm	78
Weight	Kg	0.56
MOTOR SPECIFICATIONS WITH PLANETARY GEAR
Rated Torque	N.m	0.72
Rated Speed	Rpm	140±10%
Rated Power	W	18W
RATIO		25:1

*Products can be customized by special request.

Wiring Diagram

FUNCTION	COLOR
+5V	RED	UL1007 26AWG
HALL A	YELLOW
HALL B	GREEN
HALL C	BLUE
GND	BLACK
PHASE A	YELLOW	UL3265 22AWG
PHASE B	GREEN
PHASE C	BLUE

Mechanical Dimension

GEARBOX PART Electrical Specification:

36mm Powder metallurgy

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Powder metallurgy	sleeve bearings	≤120	≤80	≤500	≤0.03	≤0.1	≤1.5

Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length (mm)	Weight(g)	Number of gear trains
1/4	0.3	1.0	81%	24.8	145	1
1/5
1/16	1.2	3.5	72%	32.4	173	2
1/20
1/25
1/53	2.5	7.5	65%	41.9	213	3
1/62
1/76
1/94
1/117

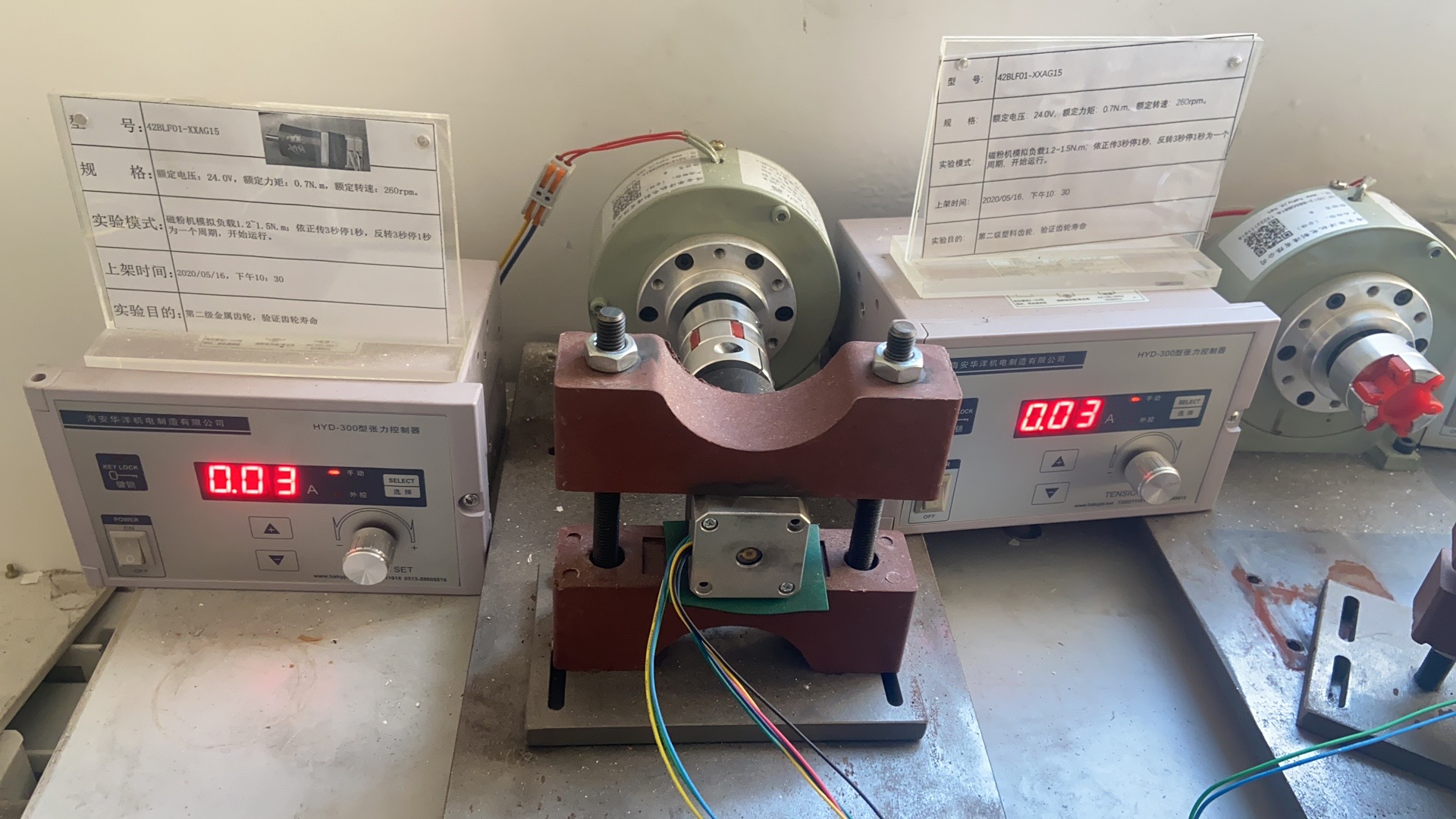

Gearbox Motor Aging Test
