    310V High Voltage Brushless Dc Motor 221W 4200 Rpm 0.5 Nm 90mm For Textile Machine

    Ask Lasest Price
    Brand Name : HeTai
    Model Number : 90BLY02D
    Certification : CE ROHS ISO
    Price : USD
    Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 PCS/MONTH
    Delivery Time : 25 DAYS
    • Product Details
    • Company Profile

    310V High Voltage Brushless Dc Motor 221W 4200 Rpm 0.5 Nm 90mm For Textile Machine

    90BLY02D 90mm*90mm rear shaft brushless dc motors 310V for textile machine


    90BLY02D is a specialized BLDC for textile machinery, with a high torque of 0.5 Nm and output power at 221W.

    No-load speed 5700±10% RPM

    No-load current 0.3A max

    • The customized motor has the pros of:
    • high speed
    • Constantly stable operation
    • Cost-effective
    • Long lifespan

    Electrical Specification

    SpecificationUnit90BLY02D
    Number Of PhasesPhase3
    Number Of PolesPoles8
    Rated VoltageVDC310
    Rated SpeedRpm4200
    Rated TorqueN.m0.5
    Rated PowerW221
    Peak TorqueN.m1.5
    Peak CurrentAmps0.3
    Torque ConstantN.m/A0.52
    Back EMF constantV/kRPM54.3
    Body Lengthmm73
    WeightKg4.07
    *Products can be customized by special request.

    Wiring Diagram

    FUNCTIONCOLOR
    +5VREDUL1007 26AWG
    HALL AYELLOW
    HALLBGREEN
    HALLCBLUE
    GNDBLACK
    PHASE AYELLOWUL1007 20AWG
    PHASE BGREEN
    PHASE CBLUE
    GROUND WIREYEL/GRN

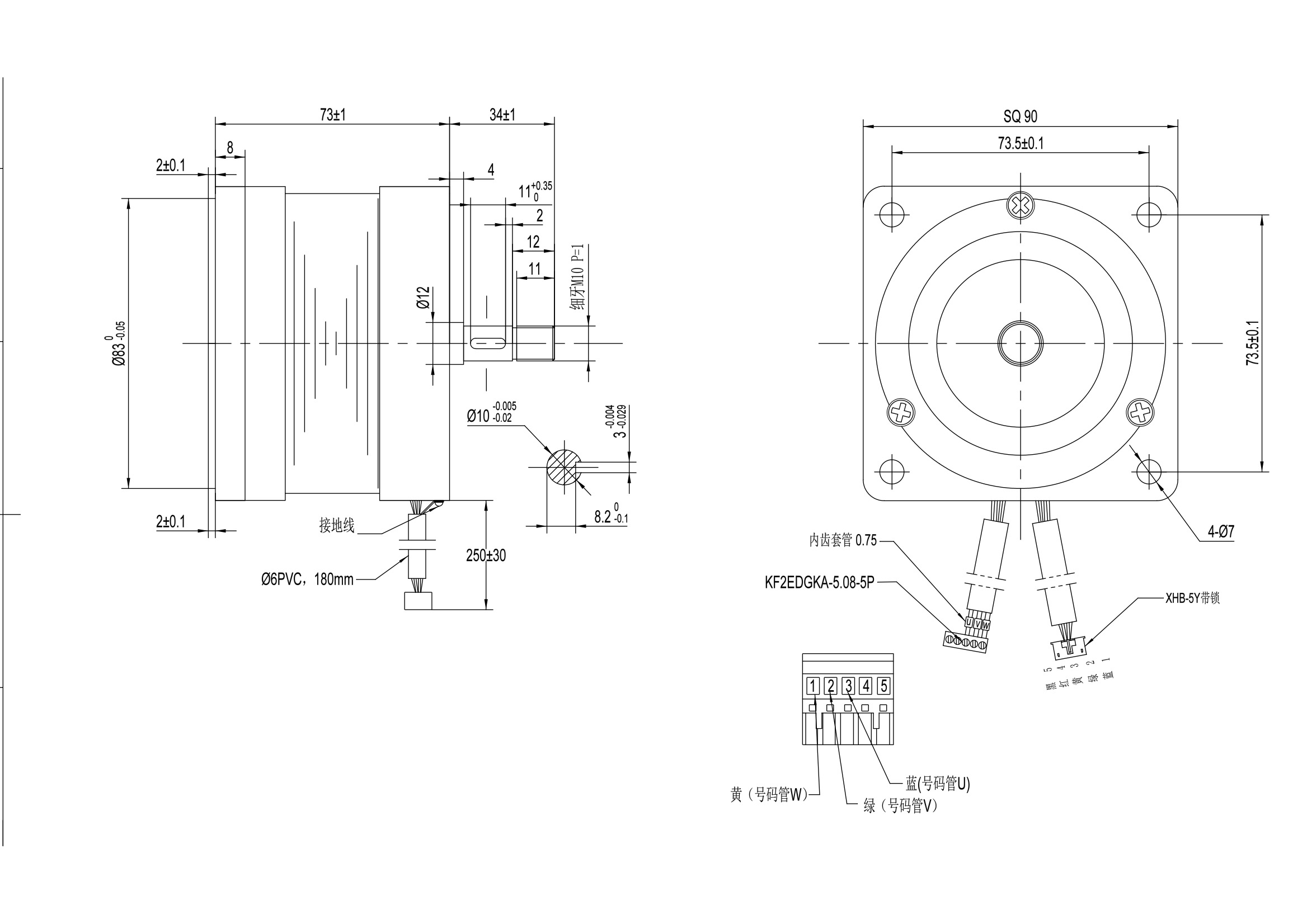

    Mechanical Dimension
