Product Description:
Compact and Lightweight Design
- Small Size: With a diameter of 90 mm and a height of 15 mm, it is suitable
for installation in space-constrained environments, such as
precision instruments and small robots.
- Lightweight: Weighing only 0.22 kg, it is easy to integrate into various
devices, reducing the overall system weight and enhancing the
equipment’s mobility and performance.
Precise Positioning
- Moderate Speed: The 400 RPM speed is ideal for achieving high-precision
positioning and motion control.
Smooth Operation
- Low Vibration and Noise: The lower speed helps minimize vibration and noise, providing
smooth and stable operation.
Features:
Moderate voltage and current: The 28V DC voltage and 0.5A current rating provide a good balance
between energy consumption and performance for a wide range of
application environments, ensuring efficient operation with low
energy consumption.
Run smoothly:The 400 RPM speed rating allows the motor to provide highly
accurate positioning and motion control, ideal for applications
requiring precise operation, such as robot arms, automation
equipment and precision machining.
Low noise and vibration: The moderate speed and frameless design reduces vibration and
noise in mechanical transmissions, providing a smooth and stable
running experience that contributes to the overall performance of
the equipment and the user's operating comfort.
Technical Parameters:
| Type | Servo Frameless Motor |
| Rated torque | 0.18NM |
| Frame Size | 90 Mm |
| No Of Poles | 16 Poles |
| Dc Link Voltage | 28 VDC |
| Weight | 0.22 Kg |
| Rated Speed | 400 Rpm |
| Rated Current | 0.5 A |

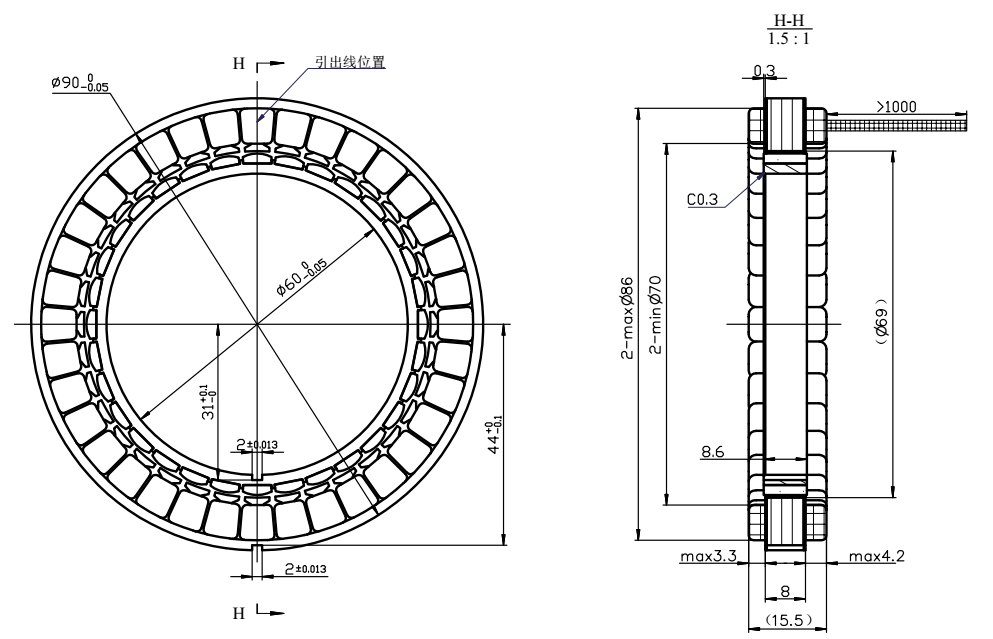

Drawing data:
Applications:
Frameless motors are used in a wide range of applications.
Robotics: Commonly used to drive robot joints, providing high-precision
motion control and responsiveness. The lightweight and compact
design makes it suitable for use in collaborative robots, enhancing
their flexibility and safety.
Automation equipment: Used to drive and control precision mechanical components in
automated assembly lines, ensuring high production efficiency and
precision.
Medical devices: The use of frameless motors in surgical robots provides
high-precision control and enhances the precision and safety of
surgery.
Laboratory equipment: Precision measuring instruments, analytical instruments, etc.
Provide precise motion control in laboratory equipment that
requires high precision and stability, such as precision
positioning stages.
The 90 mm diameter design of the frameless torque motor is suitable
for use in a wide range of demanding applications due to its
compactness, efficiency, precision and reliability, meeting the
needs of various industries for high performance and precision
control.
