Product Description:
With a diameter of 20 mm and a length of 29.9 mm, the 20BYGH series
hybrid stepper motor is ideal for applications where space is
limited.
The motor has a resistance of 3.5Ω/phase and delivers 0.6A/phase
current. The hybrid stepper motor has insulation class B, which
means it can operate in temperatures up to 130°C.
Whether you're looking for a motor for a robotics project, CNC
machine tool, 3D printer, or other application, the Hybrid Stepper
Motor is the perfect choice.
Its high torque, high precision and high efficiency make it a
popular choice for engineers and hobbyists alike. This 20BYGH motor
series is therefore a versatile and reliable motor that is ideal
for a variety of applications.
Its hybrid design combines the best features of both types of
permanent magnet motors and variable reluctance motors to deliver
high torque, high precision and high efficiency.

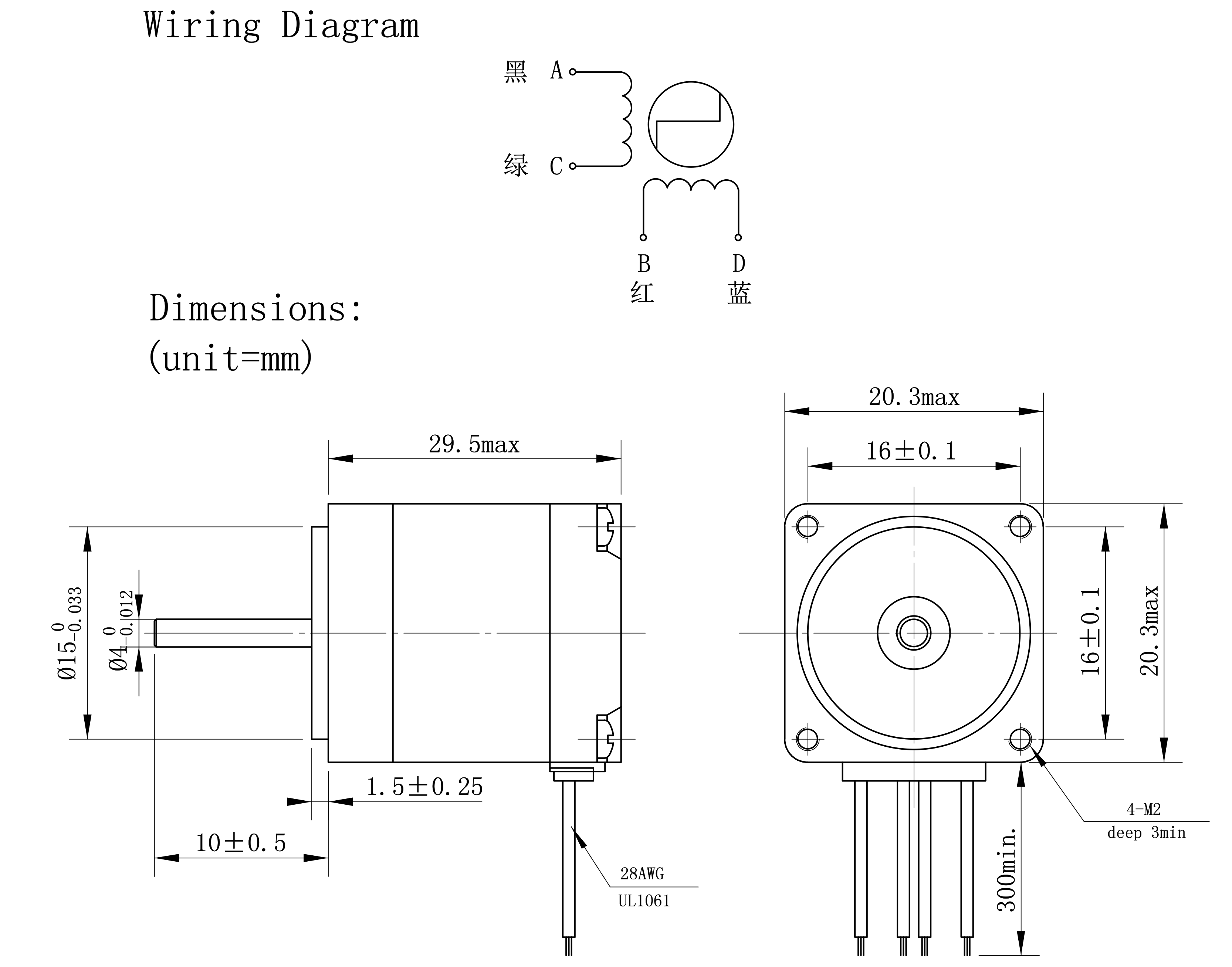

Data drawing parameters:
| DATA PARAMETER | 20BYGH101-GGS | 20BYGH301-GGS | 20BYGH501-GGS |
| STEP ANGLE °/step | 1.8 | 1.8 | 1.8 |
| RATED VOLTAGE V | 2.1 | 2.6 | 3.84 |
| CURRENT A/phase | 0.6 | 0.5 | 0.6 |
| RESISTANCE Ω/phase | 3.5 | 5.2 | 6.4 |
| INDUCTANCE mH/phase | 0.1 | 1.8 | 2.4 |
| HOLDING TORQUE g.cm | 100 | 180 | 180 |
| INSULATION CLASS | B | B | B |
| length MM | 29.9 | 39.5 | 46.8 |
Applications:
Stepper motors are widely used in various fields, including:
control of drug delivery pumps, precision surgical instruments, and
positioning systems in imaging devices.
1. Industrial Automation: They are used to control conveyors, valves, doors, injection
molding machines, packaging machinery, and other equipment to
achieve high-precision motion control and automation in production.
2. Precision Instruments: Widely applied in laboratory equipment, optical devices, and
measuring 1. Medical Devices: They are extensively utilized in
medical devices for precise instruments to achieve precise motion
control and positioning.
3. Consumer Electronics: Stepper motors are employed in automatic focusing cameras, 3D
printers, precision electronic regulators, and small household
robots among other consumer electronics products.
4. Automotive and Aerospace: They are used to control engine valves in automobiles, precise
control systems in aerospace components, and servos in aircraft and
drones.
5. Robotics: Stepper motors find wide applications in various types of robots,
including industrial robots, service robots, and medical robots,
for precise motion and position control.
These are just a few examples of stepper motor applications. Their
high precision, reliability, and flexibility make them an
indispensable part of many industries. More applications and
functions await exploration!
Order Delivery Process
1. Receive order
2. Procure materials
3. Stator production
4. Testing
5. Rotor production
6. Testing
7. Packaging
8. Delivery to customer
