NEMA 24 TB60 Efficient Planetary Reducer Gearbox with Less Than 5 Arcmin Backlash

Ask Lasest Price
Brand Name :	Hetai
Model Number :	TB60
Certification :	CE ISO
Delivery Time :	30days

Add to Cart

Product Details
Company Profile

NEMA 24 TB60 Efficient Planetary Reducer Gearbox with Less Than 5 Arcmin Backlash

Download data sheet of:TB High-precision gearboxes.pdf

Product Description:

Planetary Reducer Gearbox — High Precision Gearbox with Low Noise and Vibration

Our Planetary Reducer Gearbox is designed to provide maximum efficiency and reliability with low noise and vibration. It is suitable for a wide range of applications, such as manufacturing, automotive, marine, and agriculture. The gearbox is equipped with high-precision gears and is capable of providing a backlash of less than 5 arcmin. It has a noise level of less than 65dB, and a vibration level of less than 5mm/s. The gearbox can be cooled by air cooling or oil cooling, depending on the specific application.

Our Planetary Reducer Gearbox is designed to provide high performance and durability. It is made of high-grade materials and undergoes rigorous quality control tests to ensure that it performs reliably and consistently. The gearbox is suitable for a wide range of applications and is easy to install and maintain. It is an ideal choice for those looking for a reliable and high-precision gearbox.

Support and Services:

Our Planetary Reducer Gearbox product comes with comprehensive technical support and services to ensure smooth operation and maximum efficiency. We offer:

Installation assistance and guidance
Product training and education
Maintenance and repair services
24/7 technical support hotline
Customization options to meet specific needs and requirements

Our team of experienced engineers and technicians are dedicated to providing exceptional service and support to our customers. Contact us for any technical assistance or service inquiries.

Technical Parameters:

SPECIFICATION

SPEC		Stage	Ratio	TB042	TB060	TB090	TB115	TB142

				TE050	TE070	TE090	TE120	TE150

Rate output torque. T2n(N-M)		1	3	18	42	117	187	351
			4	16	45	126	261	516
			5	16	48	141	311	588
			8	15	45	117	277	539
			10	12	36	114	242	505
		2	15	18	42	117	187	351
			20	16	45	126	261	516
			25	16	48	141	311	588
			30	18	42	117	187	351
			35	16	48	141	311	588
			40	16	45	126	261	516
			50	16	48	141	311	588
			70	15	45	117	277	539
			100	12	36	114	242	505
Emergrncy Stop Torque T2not (N-M)(1)		1,2	3~100	3 times of Rate output torque

Rate Input Speed n	rpm	1,2	3~100	3,000	3,000	3,000	2,000	2,000
Max.Inptut Speed n	rpm	1,2	3~100	5,000	5,000	5,000	4,000	3,000
Service Life **	hr	1,2	3~100	15000(S1),30000(S5)
Operaring Temp	℃	1,2	3~100	-10℃~+90℃
Protection		1,2	3~100	IP65
Lubrication		1,2	3~100	Synthetic grease
Mounting Position		1,2	3~100	Any direction
Running Noise	dB(2)	1,2	3~100	≦60	≦60	≦63	≦63	≦65

Effciency	%	1	3~10	≧97%

		2	15~100	≧95%

Mechanical Drawing:

Applications:

Hetai TB42 Planetary Reducer Gearbox: High Precision Gearbox for All Applications

Hetai's TB42 Planetary Reducer Gearbox is a high precision and durable gearbox designed to meet the demands of a wide variety of applications. The TB42 has a strong steel material construction and is suitable for input speeds of 3000-5000rpm. It features an impressive backlash of less than 5 arcmin which allows for precise control and movement. The TB42 is available in a range of ratios from 3 to 100 and can be cooled using either air or oil cooling. It is certified with both CE and ISO and a minimum order quantity of 50. The TB42 is an ideal choice for various applications, including industrial automation, robotics, medical technology, aerospace, and more.

Customization:

Planetary Reducer Gearbox
Brand Name: Hetai
Model Number: TB42
Place of Origin: Changzhou
Certification: CE ISO
Minimum Order Quantity: 50
Ratio: 3-100
Input Speed: 3000-5000rpm
Output Torque: Up To 588N.m
Cooling Method: Air Cooling, Oil Cooling
Material: Steel
Highlights: Our Planetary Reducer Gearbox is a reliable and powerful solution for industrial applications. It features a 3-100 ratio, input speed up to 5000RPM, and output torque up to 588N.m. It is made of steel and is available with air cooling and oil cooling methods. It is CE and ISO certified and has a minimum order quantity of 50.

Support and Services:

Planetary Reducer Gearbox Technical Support and Service

24/7 online technical support
Expert advice on product selection and application
On-site troubleshooting and maintenance
Comprehensive repair and overhaul services
Technical training and education
OEM-customized design and development
Customization:

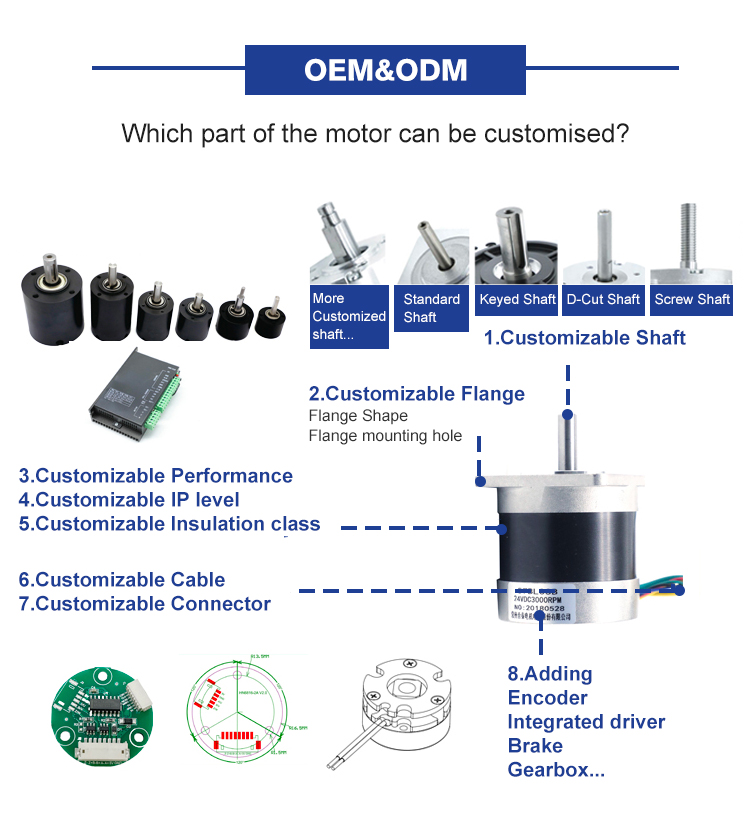

Which motor components can be customized?
Additional custom parts include: custom shafts, standard shafts, keyed shafts, D-cut shafts, threaded shafts, etc.

①　Custom shafts
②　Custom flanges, including flange shape and flange mounting holes
③　Custom performance
④　Custom IP rating
⑤　Custom insulation class
⑥　Custom cables
⑦　Custom connectors
⑧　Custom encoders
⑨　Custom integrated drives and brakes
