Product Description:
The servo frameless motor is an advanced driving device that
integrates high precision, high torque output and high integration
features.
This motor removes the frame design of the traditional motor,
making the structure more compact and lightweight, while
maintaining excellent power performance and movement accuracy.
Its original design is to meet the needs of automation and joint
robot applications with strict space requirements and high
performance requirements.
Features:
1:High precision: The servo frameless motor adopts advanced control algorithms and
precise manufacturing processes to ensure extremely high
positioning accuracy and repeatable positioning accuracy, and is
suitable for application scenarios that have strict requirements on
motion trajectories.
2:High torque output: Despite its small size, this motor can still provide strong torque
output to meet various load requirements and ensure system
stability and reliability.
3:High integration: The frameless design allows the motor, control system, sensors and
other components to be more closely integrated, reducing the floor
space, simplifying the system structure, and improving overall
efficiency.

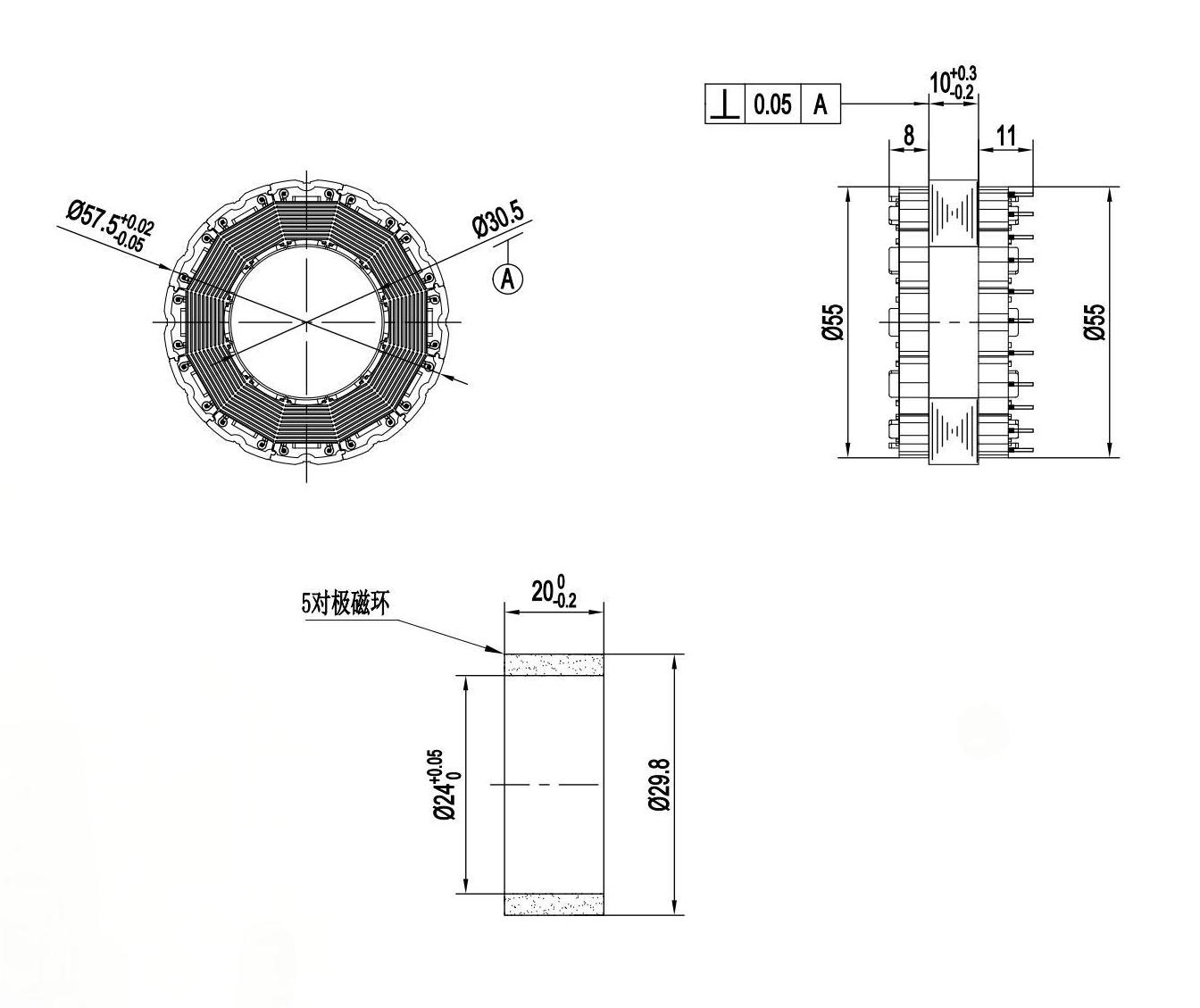

4:Compact structure: the diameter is only 60MM~130MM, the height range is between
10MM~40MM, the weight ranges from 0.14KG to 0.75KG, and the coil is
compact, which is very suitable for application scenarios with
extremely high space requirements.
Technical Parameters:
Power: 100W~400W, the appropriate power level can be selected according
to specific needs.
Voltage: Supports two voltage levels of 24V/48V, making it easy to be
compatible with different power systems.
Current: The current range is between 3.5A~12A, ensuring the stable
operation of the motor under different loads.
Speed range: The speed can be adjusted from 2000RPM to 4000RPM to meet
different speed and acceleration requirements.
Diameter
60mm | Model No | Height
(MM) | Power
0W) | Pole | Input
Voltage
(V) | Rated
Current
(A) | Rated
Speed
(RPM | Rated
Torque
(N.M) | Weight
(Kg) |
| 60SF-S10 | 10 | 100 | 10 | 48 | 3.5 | 2000-4000 | 0.32 | 0.14 |
| 60SF-S15 | 15 | 150 | 10 | 48 | 7.0 | 2000-4000 | 0.46 | 0.22 |
| 60SF-S20 | 20 | 150 | 10 | 24 | 10 | 2000-4000 | 0.46 | 0.28 |
| 60SF-S20 | 20 | 200 | 10 | 48 | 7.0 | 2000-4000 | 0.64 | 0.27 |
| 60SF-S30 | 30 | 300 | 10 | 48 | 8.0 | 2000-4000 | 0.955 | 0.43 |
| 60SF-S40 | 40 | 400 | 10 | 48 | 12 | 2000-4000 | 1.27 | 0.75 |
Applications:
Servo frameless motors are widely used in the following fields with
their unique advantages:
1. Robot technology: As a drive motor for robot joints, it provides precise motion
control and powerful torque output, improving the flexibility and
load capacity of the robot.
2. Automated production line: In scenarios such as automated assembly and material handling,
frameless motors, with their compact structure and high efficiency,
effectively improve the efficiency and accuracy of the production
line.
3. Medical equipment: In medical equipment, such as surgical robots, rehabilitation
equipment, etc., the high precision and stability of frameless
motors provide a strong guarantee for medical operations.
4. Aerospace: In precision instruments and test equipment in the aerospace
field, the high integration and lightweight design of frameless
motors meet the performance requirements in extreme environments.
Company Profile:
Please feel free to contact us for more information!
Email: info@ht-motor.com
Certificates and Qualifications
Our products have passed a number of international certifications,
such as ISO9001 Quality Management System Certification, CE
Certification and RoHS Certification. These certificates not only
prove the high quality and reliability of our products, but also
highlight our commitment to our customers' safety and environmental
responsibility.
